微尘滤清器/活性碳过滤器 for BMW 3 Series E46 330xd (2005)

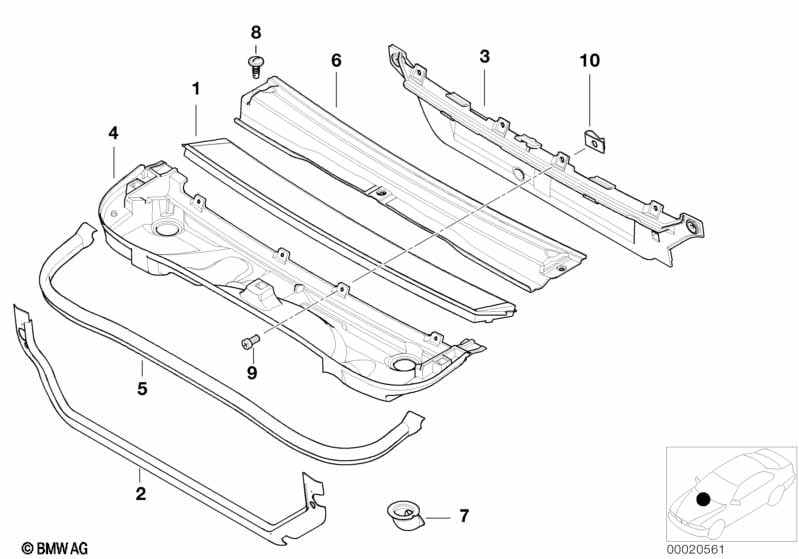

This 微尘滤清器/活性碳过滤器 technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330xd. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 微尘滤清器/活性碳过滤器 | 1 | 04/2011 | 64319216590 | 已经终止 | Shop at ECS Tuning | ||||
| 01 | 微尘滤清器/活性碳过滤器 | 1 | 64319257504 | Shop at ECS Tuning | ||||||
| 02 | 密封件 滤清器箱 | 1 | 64318370409 | $17.22 | Shop at ECS Tuning | |||||
| 03 | 壳体 下部分 微尘滤清器 | 1 | 64318362894 | $44.90 | Shop at ECS Tuning | |||||
| 04 | 壳体 微尘滤清器 | 1 | 64318370066 | $83.35 | Shop at ECS Tuning | |||||
| 05 | 密封件 滤清器箱 | 1 | 51718215915 | $19.68 | Shop at ECS Tuning | |||||
| 06 | 盖罩 微尘滤清器 | 1 | 64318363423 | $8.67 | Shop at ECS Tuning | |||||
| 07 | 排水阀 | 2 | 64318370067 | $2.80 | Shop at ECS Tuning | |||||
| 08 | 密封圈 | 3 | 64318385244 | $1.98 | Shop at ECS Tuning | |||||
| 09 | 螺钉 | 4 | 07143451510 | $0.44 | Shop at ECS Tuning | |||||
| 10 | 插入式螺母 | 4 | 64316939292 | $1.53 | Shop at ECS Tuning |
备注
- 已经终止 = 这个零件已经不再生产.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 330xd 微尘滤清器/活性碳过滤器?
- This technical diagram illustrates the 微尘滤清器/活性碳过滤器 within the 冷暖空调 group for the 3 Series E46 330xd produced during 2005. It provides a detailed exploded view of the components, identifying key parts such as the 微尘滤清器/活性碳过滤器 (Part #64319216590).
- Which models use the hardware listed in this 微尘滤清器/活性碳过滤器?
- The hardware and components featured in the 微尘滤清器/活性碳过滤器 are specific to the 3 Series E46 330xd produced during 2005. These technical specifications ensure that parts like the 微尘滤清器/活性碳过滤器 (64319216590) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the 微尘滤清器/活性碳过滤器 assembly?
- Each item in the 微尘滤清器/活性碳过滤器 corresponds to the numbered list below the illustration. For the 3 Series E46 330xd, you can identify the 微尘滤清器/活性碳过滤器 by locating its position on the schematic, which then links to the official BMW part number 64319216590 for the 冷暖空调 section.
