操作面板 暖风器 for BMW 1500-2000CS 1800 (1971)

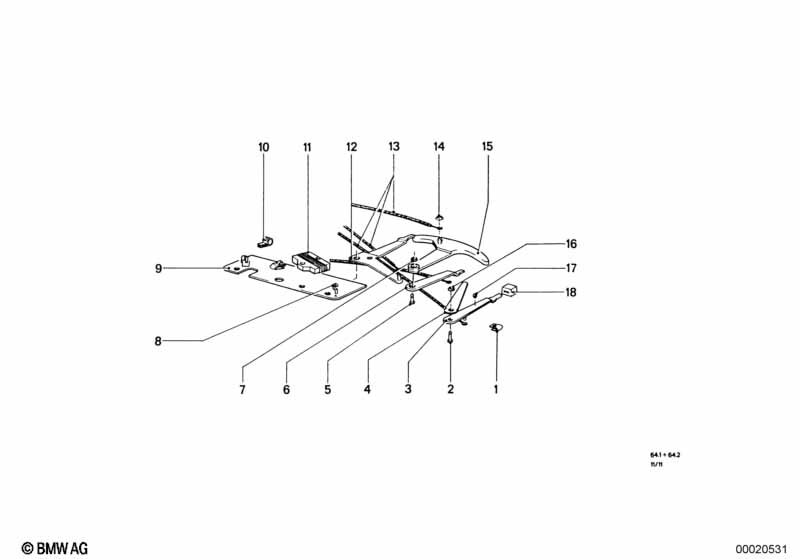

This 操作面板 暖风器 technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 杠杆 | 1 | 64111351381 | 已经终止 | Shop at ECS Tuning | |||||
| 04 | 接触弹簧 | 1 | 64111351387 | 已经终止 | Shop at ECS Tuning | |||||
| 06 | 杠杆 | 1 | 64111351382 | 已经终止 | Shop at ECS Tuning | |||||
| 07 | 垫圈 | 1 | 64111351391 | 已经终止 | Shop at ECS Tuning | |||||
| 10 | 夹子 | 9 | 64111351375 | $1.74 | 已经终止 | Shop at ECS Tuning | ||||
| 11 | 电阻 | 1 | 64111351396 | 已经终止 | Shop at ECS Tuning | |||||
| 12 | 杠杆 | 1 | 64111351384 | 已经终止 | Shop at ECS Tuning | |||||
| 13 | 拉线 | 1 | 07/1968 | 12/1971 | 64111351392 | 已经终止 | Shop at ECS Tuning | |||
| 13 | 拉线 | 1 | 07/1968 | 12/1971 | 64111351393 | 已经终止 | Shop at ECS Tuning | |||
| 13 | 拉线 | 1 | 07/1968 | 12/1971 | 64111351394 | 已经终止 | Shop at ECS Tuning | |||
| 13 | 拉线 | 1 | 07/1968 | 12/1971 | 64111351395 | 已经终止 | Shop at ECS Tuning | |||
| 14 | 螺母 | 1 | 64111351475 | 已经终止 | Shop at ECS Tuning | |||||
| 15 | 杠杆 | 1 | 64111353145 | 已经终止 | Shop at ECS Tuning | |||||
| 17 | 球 | 5MM III | 2 | 07119986250 | $0.28 | Shop at ECS Tuning | ||||
| 18 | 按钮 | 4 | 64111353115 | 已经终止 | Shop at ECS Tuning |
备注
- 已经终止 = 这个零件已经不再生产.
