壳体零件 供暖装置/微尘滤清器 for BMW 3 Series E30 325ix (1987)

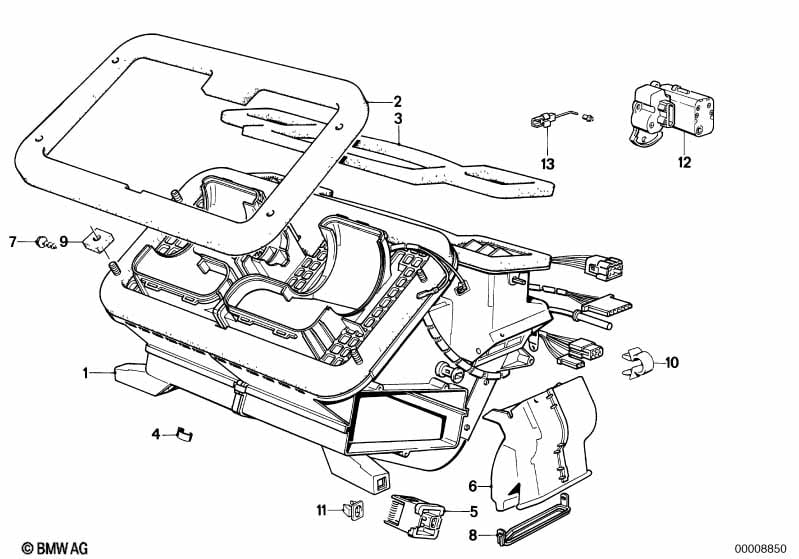

This 壳体零件 供暖装置/微尘滤清器 technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325ix. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | 仅适用于 加热器 (进油管路 塑料) |
|||||||||
| 01 | 壳体 | 1 | 09/1984 | 64111381692 | $559.09 | 已经终止 | Shop at ECS Tuning | |||
| 仅连接 | ||||||||||
| -- | 导线组 | 1 | 09/1984 | 61121381797 | $26.78 | 已经终止 | Shop at ECS Tuning | |||
| 02 | 密封件 | 1 | 64111375719 | $34.45 | Shop at ECS Tuning | |||||
| 03 | 密封件 | 1 | 64111370937 | $31.16 | Shop at ECS Tuning | |||||
| 04 | 夹子 | X | 64111370938 | $0.38 | Shop at ECS Tuning | |||||
| 05 | 电阻 | 1 | 09/1984 | 64111375754 | $38.57 | Shop at ECS Tuning | ||||
| 06 | 空气道 左 | 1 | 64211370619 | $13.43 | 已经终止 | Shop at ECS Tuning | ||||
| 06 | 空气道 右 | 1 | 64211370620 | $9.17 | 已经终止 | Shop at ECS Tuning | ||||
| 06 | Air channel right | 1 | 64211466232 | $4.32 | Shop at ECS Tuning | |||||
| 07 | 螺钉 | 9 | 64111370949 | $0.38 | Shop at ECS Tuning | |||||
| 08 | 密封盖 | 2 | 64111374999 | $0.80 | 已经终止 | Shop at ECS Tuning | ||||
| 09 | 密封件 | 2 | 64111375772 | $0.38 | 已经终止 | Shop at ECS Tuning | ||||
| 10 | 导线支架 | D=16,8MM | 2 | 12521276147 | $0.58 | Shop at ECS Tuning | ||||
| 11 | 锁止件 | 2 | 64111376327 | $0.80 | Shop at ECS Tuning | |||||
备注
- 已经终止 = 这个零件已经不再生产.
