补充件 第 2 组件 for BMW 3 Series E36 325i (1993)

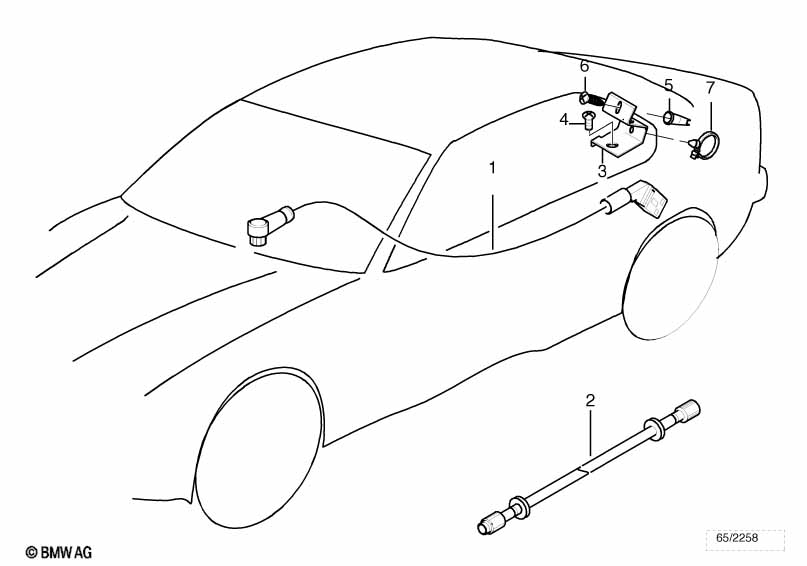

This 补充件 第 2 组件 technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 连接电缆 | C-PROFESSIONAL | 1 | 65128375233 | $130.57 | 已经终止 | Shop at ECS Tuning | |||
| 02 | 天线导线 | 3080MM | 1 | 65248375161 | $19.47 | 已经终止 | Shop at ECS Tuning | |||
| 03 | 支架 接收元件 | 1 | 65128360541 | 已经终止 | Shop at ECS Tuning | |||||
| 04 | 半圆头埋头螺钉 | M5X8 | 1 | 07119907623 | $0.25 | Shop at ECS Tuning | ||||
| 05 | 膨胀螺母 | ST 4.8 WEISS | 1 | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
| 06 | 半圆头自攻螺钉 | ST4,8X16-Z1 | 1 | 07119907925 | $0.25 | Shop at ECS Tuning | ||||
| 06 | 自攻螺钉 | ST4,8X16 | 1 | 07119906876 | $0.25 | Shop at ECS Tuning | ||||
| 07 | 导线扎带 | 1 | 61131391721 | $1.77 | Shop at ECS Tuning |
备注
- 已经终止 = 这个零件已经不再生产.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 325i 补充件 第 2 组件?
- This technical diagram illustrates the 补充件 第 2 组件 within the 音频、导航、信息系统 group for the 3 Series E36 325i produced during 1993. It provides a detailed exploded view of the components, identifying key parts such as the 连接电缆 (Part #65128375233).
- Which models use the hardware listed in this 补充件 第 2 组件?
- The hardware and components featured in the 补充件 第 2 组件 are specific to the 3 Series E36 325i produced during 1993. These technical specifications ensure that parts like the 连接电缆 (65128375233) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the 补充件 第 2 组件 assembly?
- Each item in the 补充件 第 2 组件 corresponds to the numbered list below the illustration. For the 3 Series E36 325i, you can identify the 连接电缆 by locating its position on the schematic, which then links to the official BMW part number 65128375233 for the 音频、导航、信息系统 section.
