零件 高保真系统 后车门 for BMW 7 Series E38 750iLP (1998)

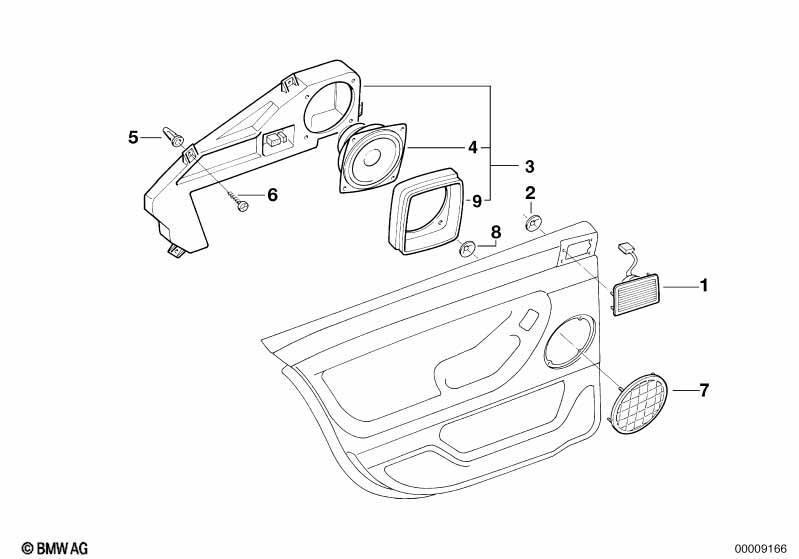

This 零件 高保真系统 后车门 technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 750iLP. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | 用于车辆及 高保真扬声器系统 |
S676A=是 |
||||||||
| 01 | 中高音喇叭 左 高保真 | SCHWARZ | 1 | 65138352715 | $64.43 | Shop at ECS Tuning | ||||
| 01 | 中高音喇叭 右 高保真 | SCHWARZ | 1 | 65138352716 | $64.43 | Shop at ECS Tuning | ||||
| 01 | 中高音喇叭 左 高保真 | MARINEBLAU | 1 | 65138352717 | $64.43 | 已经终止 | Shop at ECS Tuning | |||
| 01 | 中高音喇叭 右 高保真 | MARINEBLAU | 1 | 65138352718 | $69.19 | 已经终止 | Shop at ECS Tuning | |||
| 01 | 中高音喇叭 左 高保真 | DUNKELGRUEN | 1 | 65138352719 | $64.43 | 已经终止 | Shop at ECS Tuning | |||
| 01 | 中高音喇叭 右 高保真 | DUNKELGRUEN | 1 | 65138352720 | $64.43 | 已经终止 | Shop at ECS Tuning | |||
| 01 | 中高音喇叭 左 高保真 | DUNKELBEIGE | 1 | 65138375015 | $64.43 | Shop at ECS Tuning | ||||
| 01 | 中高音喇叭 右 高保真 | DUNKELBEIGE | 1 | 65138375016 | $64.43 | 已经终止 | Shop at ECS Tuning | |||
| 02 | 弹簧螺母 | 8 | 64111364257 | $0.62 | Shop at ECS Tuning | |||||
| 03 | 扬声器箱 车门 左后 | STEREO / HIFI | 1 | 65138352431 | $104.80 | Shop at ECS Tuning | ||||
| 03 | 扬声器箱 车门 右后 | STEREO / HIFI | 1 | 65138352432 | $104.80 | Shop at ECS Tuning | ||||
| 04 | 扬声器 | STEREO / HIFI | 2 | 65138352686 | $32.48 | Shop at ECS Tuning | ||||
| 05 | 膨胀螺母 | ST 4.8 WEISS | 8 | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
| 06 | 半圆头自攻螺钉 | ST4,8X16 | 8 | 07147137416 | $0.20 | Shop at ECS Tuning | ||||
| 07 | 扬声器饰板 | SCHWARZ | 2 | 51418178241 | $16.05 | 已经终止 | Shop at ECS Tuning | |||
| 07 | 扬声器饰板 | MARINEBLAU | 2 | 51418178242 | $14.13 | Shop at ECS Tuning | ||||
| 07 | 扬声器饰板 | SANDBEIGE | 2 | 51418178999 | $14.13 | Shop at ECS Tuning | ||||
| 07 | 扬声器饰板 | DUNKELGRUEN | 2 | 51418179000 | $14.13 | 已经终止 | Shop at ECS Tuning | |||
| 07 | 扬声器饰板 | GRAU | 2 | 51418190825 | $14.13 | Shop at ECS Tuning | ||||
| 07 | 扬声器饰板 | LAVENDELGRAU | 2 | 51418190826 | $14.13 | Shop at ECS Tuning | ||||
| 07 | 扬声器饰板 | PASTELLGRUEN | 2 | 51418190827 | 已经终止 | Shop at ECS Tuning | ||||
| 用于车辆及 Chrome-Line / 特种装备 SA 345 |
=是 |
|||||||||
| 07 | 扬声器饰板 | SCHWARZ | 2 | 51418216716 | $26.75 | Shop at ECS Tuning | ||||
| 07 | 扬声器饰板 | GRAU | 2 | 51418216717 | $13.38 | 已经终止 | Shop at ECS Tuning | |||
| 07 | 扬声器饰板 | MARINEBLAU | 2 | 51418216718 | $13.38 | 已经终止 | Shop at ECS Tuning | |||
| 07 | 扬声器饰板 | SANDBEIGE | 2 | 51418216719 | $13.38 | Shop at ECS Tuning | ||||
| 07 | 扬声器饰板 | LAVENDELGRAU | 2 | 51418216720 | $14.17 | 已经终止 | Shop at ECS Tuning | |||
| 07 | 扬声器饰板 | DUNKELGRUEN | 2 | 51418216721 | $13.38 | 已经终止 | Shop at ECS Tuning | |||
| 07 | 扬声器饰板 | PASTELLGRUEN | 2 | 51418216722 | $14.17 | 已经终止 | Shop at ECS Tuning | |||
| 07 | 扬声器饰板 | PEARLBEIGE | 2 | 09/1998 | 51418247497 | $21.98 | 已经终止 | Shop at ECS Tuning | ||
| 08 | 弹簧螺母 | 8 | 64111364257 | $0.62 | Shop at ECS Tuning | |||||
| 09 | 扬声器隔音环 | 2 | 65138369083 | $9.28 | Shop at ECS Tuning | |||||
备注
- 已经终止 = 这个零件已经不再生产.
