零件 装置托架 for BMW 5 Series E60 525i (2004)

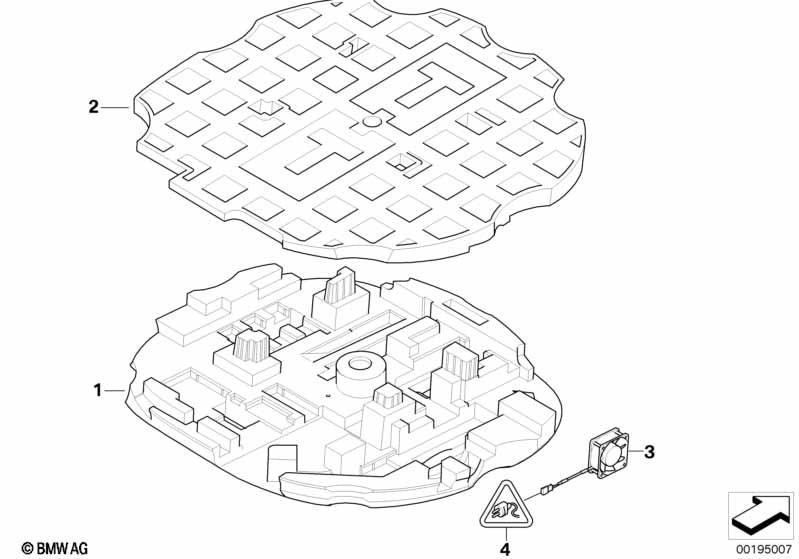

This 零件 装置托架 technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 装置托架 下部件 | 1 | 65129120060 | $30.66 | Shop at ECS Tuning | |||||
| 02 | 装置托架 上部件 | 1 | 65129120134 | $34.20 | Shop at ECS Tuning | |||||
| 用于车辆及 耳机附件 位于后座区 |
S678A=是 |
|||||||||
| 03 | 风扇 | 1 | 65126920409 | $28.20 | Shop at ECS Tuning | |||||
| 04 | 通用插头套壳 未设码 | 3 POL. | 1 | 61138377072 | $1.37 | Shop at ECS Tuning | ||||
| 仅连接 | ||||||||||
| -- | 插头触头 MQS | 0.2-0.35 MM²/SN | 3 | 61131383776 | $0.28 | Shop at ECS Tuning | ||||
