扬声器 仪表板 for BMW 7 Series G12 740LiX (2018)

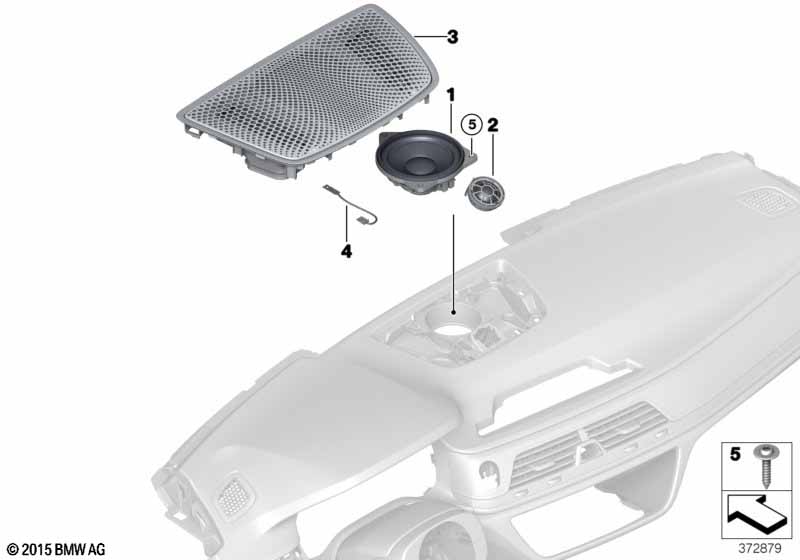

This 扬声器 仪表板 technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 740LiX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 用于车辆及 Bowers & Wilkins High End Sound System |
S6F1A=是 |
|||||||||
| 01 | 中音喇叭 | HIGH END | 1 | 65139279632 | Shop at ECS Tuning | |||||
| 用于车辆及 Harman/Kardon 环绕声系统 和 Bowers & Wilkins High End Sound System |
S688A=否 S6F1A=否 |
|||||||||
| 01 | 中音扬声器 | HIFI | 1 | 65139354084 | Shop at ECS Tuning | |||||
| 用于车辆及 Harman/Kardon 环绕声系统 和 Bowers & Wilkins High End Sound System |
S688A=是 S6F1A=否 |
|||||||||
| 01 | 中音扬声器 高保真 / 顶级高保真 | 1 | 65139368383 | Shop at ECS Tuning | ||||||
| 用于车辆及 Bowers & Wilkins High End Sound System |
S6F1A=是 |
|||||||||
| 02 | 高音喇叭 | ALEV 4 | 1 | 65139350327 | Shop at ECS Tuning | |||||
| 用于车辆及 Harman/Kardon 环绕声系统 和 Bowers & Wilkins High End Sound System |
S688A=否 S6F1A=否 |
|||||||||
| 02 | 高音喇叭 高保真系统 | 1 | 65139354083 | Shop at ECS Tuning | ||||||
| 用于车辆及 Harman/Kardon 环绕声系统 和 Bowers & Wilkins High End Sound System |
S688A=是 S6F1A=否 |
|||||||||
| 02 | 高音喇叭 | 1 | 65139184794 | Shop at ECS Tuning | ||||||
| 用于车辆及 Bowers & Wilkins High End Sound System |
S6F1A=是 |
|||||||||
| 03 | 挡板 中央扬声器 | 1 | 03/2018 | 51169493655 | Shop at ECS Tuning | |||||
| 04 | LED High End 音响系统 | 1 | 65136820713 | Shop at ECS Tuning | ||||||
| 05 | 半圆头埋头螺钉及垫圈 | DELTA PT4X20 | 3 | 07149185673 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G12 740LiX 扬声器 仪表板?
- This technical diagram illustrates the 扬声器 仪表板 within the 音频、导航、信息系统 group for the 7 Series G12 740LiX produced during 2018. It provides a detailed exploded view of the components, identifying key parts such as the 中音喇叭 (Part #65139279632).
- Which models use the hardware listed in this 扬声器 仪表板?
- The hardware and components featured in the 扬声器 仪表板 are specific to the 7 Series G12 740LiX produced during 2018. These technical specifications ensure that parts like the 中音喇叭 (65139279632) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the 扬声器 仪表板 assembly?
- Each item in the 扬声器 仪表板 corresponds to the numbered list below the illustration. For the 7 Series G12 740LiX, you can identify the 中音喇叭 by locating its position on the schematic, which then links to the official BMW part number 65139279632 for the 音频、导航、信息系统 section.
