零件 高保真系统 前车门 for BMW 7 Series G12 740LiX (2018)

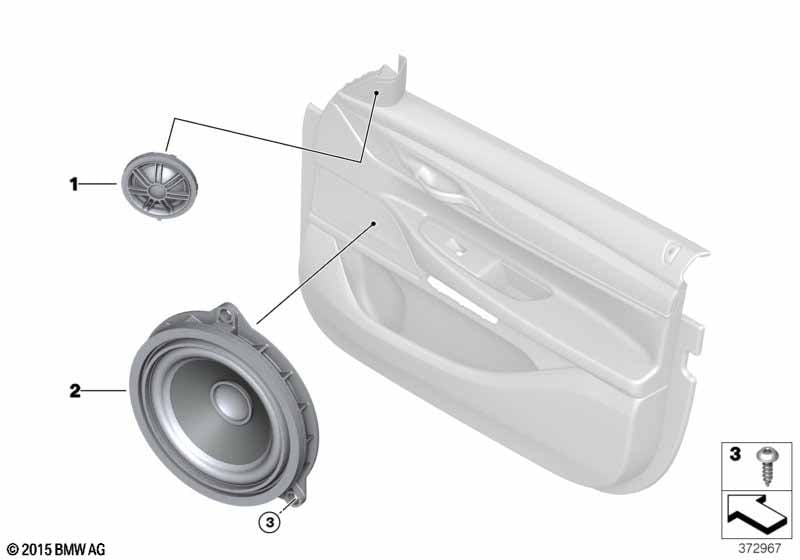

This 零件 高保真系统 前车门 technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 740LiX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | 用于车辆及 Harman/Kardon 环绕声系统 和 Bowers & Wilkins High End Sound System |
S688A=否 S6F1A=否 |
||||||||
| 01 | 高音喇叭 高保真系统 | 2 | 65139354083 | Shop at ECS Tuning | ||||||
| 02 | 中音扬声器 | HIFI | 2 | 65139354085 | Shop at ECS Tuning | |||||
| 03 | 半圆头埋头螺钉 | TS 5X16 | 6 | 51417067920 | $0.39 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G12 740LiX 零件 高保真系统 前车门?
- This technical diagram illustrates the 零件 高保真系统 前车门 within the 音频、导航、信息系统 group for the 7 Series G12 740LiX produced during 2018. It provides a detailed exploded view of the components, identifying key parts such as the 高音喇叭 高保真系统 (Part #65139354083).
- Which models use the hardware listed in this 零件 高保真系统 前车门?
- The hardware and components featured in the 零件 高保真系统 前车门 are specific to the 7 Series G12 740LiX produced during 2018. These technical specifications ensure that parts like the 高音喇叭 高保真系统 (65139354083) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the 零件 高保真系统 前车门 assembly?
- Each item in the 零件 高保真系统 前车门 corresponds to the numbered list below the illustration. For the 7 Series G12 740LiX, you can identify the 高音喇叭 高保真系统 by locating its position on the schematic, which then links to the official BMW part number 65139354083 for the 音频、导航、信息系统 section.
