全景摄像机/驻车助手 Plus for BMW 3 Series G20 大型豪华轿车 LCI M340i (2023)

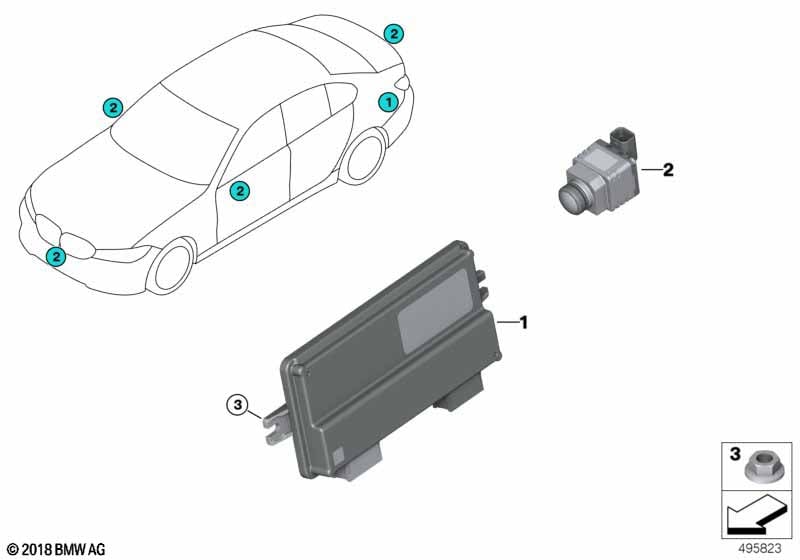

This 全景摄像机/驻车助手 Plus technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 大型豪华轿车 LCI M340i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | 用于车辆及 增强版泊车辅助系统 |
S5DNA=是 |
||||||||
| 01 | 控制单元 环视摄像头 | ICAM2-ECU V2 | 1 | 11/2023 | 66535A7C9B0 | Shop at ECS Tuning | ||||
| 01 | 控制单元 环视摄像头 | ICAM2-ECU V2 | 1 | 03/2025 | 66535B39F25 | Shop at ECS Tuning | ||||
| 01 | 控制单元 环视摄像头 | ICAM2-ECU V2 | 1 | 66535B48BE6 | Shop at ECS Tuning | |||||
| 02 | 环景显示摄像机 | 4 | 66535A0F6D7 | Shop at ECS Tuning | ||||||
| 03 | Hex Nut | M5 | 4 | 07119905710 | $2.83 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G20 大型豪华轿车 LCI M340i 全景摄像机/驻车助手 Plus?
- This technical diagram illustrates the 全景摄像机/驻车助手 Plus within the 车距控制系统，定速控制系统 group for the 3 Series G20 大型豪华轿车 LCI M340i produced during 2023. It provides a detailed exploded view of the components, identifying key parts such as the 控制单元 环视摄像头 (Part #66535A7C9B0).
- Which models use the hardware listed in this 全景摄像机/驻车助手 Plus?
- The hardware and components featured in the 全景摄像机/驻车助手 Plus are specific to the 3 Series G20 大型豪华轿车 LCI M340i produced during 2023. These technical specifications ensure that parts like the 控制单元 环视摄像头 (66535A7C9B0) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the 全景摄像机/驻车助手 Plus assembly?
- Each item in the 全景摄像机/驻车助手 Plus corresponds to the numbered list below the illustration. For the 3 Series G20 大型豪华轿车 LCI M340i, you can identify the 控制单元 环视摄像头 by locating its position on the schematic, which then links to the official BMW part number 66535A7C9B0 for the 车距控制系统，定速控制系统 section.
