挂车挂钩 for BMW 3 Series E36 320i (1994)

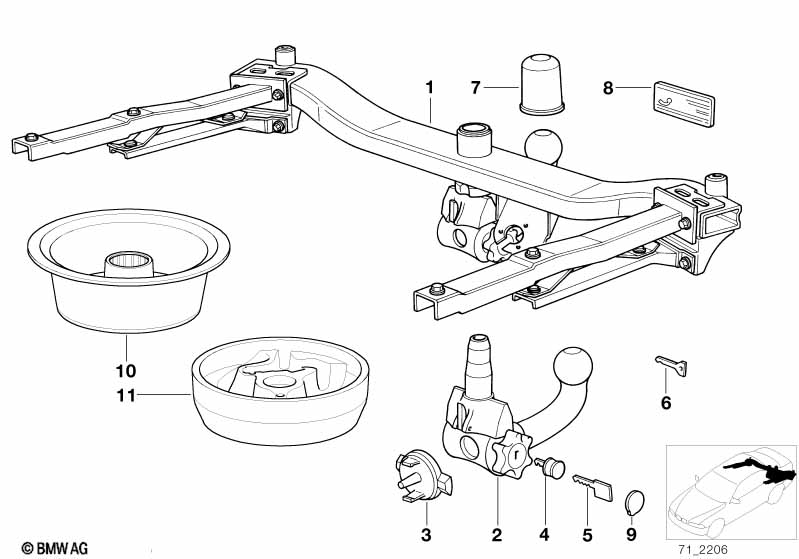

This 挂车挂钩 technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 可拆卸挂车挂钩 | FA. WESTFALIA | 1 | 71601094121 | 已经终止 | Shop at ECS Tuning | ||||
| 02 | 球头 可拆卸 | ORIS | 1 | 71601139116 | 已经终止, +core | Shop at ECS Tuning | ||||
| 02 | 球头 可拆卸 | WESTFALIA | 1 | 71601182544 | $616.59 | +core | Shop at ECS Tuning | |||
| 03 | 密封塞 | ROT | 1 | 71601090489 | $8.15 | Shop at ECS Tuning | ||||
| 04 | 钥匙 (代码) 2axx | WESTFALIA | 1 | 09/1995 | 71601134421 | Shop at ECS Tuning | ||||
| 04 | 钥匙 (代码) | ORIS | 1 | 71601137621 | Shop at ECS Tuning | |||||
| 05 | 钥匙 (代码) | ORIS | 1 | 71601137621 | Shop at ECS Tuning | |||||
| 06 | 钥匙 (坯件) 代码 2axx | WESTFALIA | 1 | 09/1995 | 71601135396 | Shop at ECS Tuning | ||||
| 06 | 钥匙 (坯件) | ORIS | 1 | 71601137622 | Shop at ECS Tuning | |||||
| 07 | 保护罩 球头 | 1 | 71601246076 | Shop at ECS Tuning | ||||||
| 08 | 支承载重牌 | 50KG | 1 | 71601135081 | Shop at ECS Tuning | |||||
| 08 | 支承载重牌 | 75KG | 1 | 71601135082 | Shop at ECS Tuning | |||||
| 08 | 支承载重牌 | MIN 50KG | 1 | 71601139628 | 已经终止 | Shop at ECS Tuning | ||||
| 09 | 保护罩 钥匙 | 1 | 71601134422 | $1.04 | Shop at ECS Tuning | |||||
| 10 | 杂物盒 备用轮胎 | 1 | 71111092276 | $17.21 | Shop at ECS Tuning | |||||
| 11 | 杂物盒 球头 | ORIS | 1 | 71601092524 | +core | Shop at ECS Tuning | ||||
| 11 | 杂物盒 球头 | WESTFALIA | 1 | 71601182801 | Shop at ECS Tuning | |||||
| 11 | 尼龙搭扣 | 1 | 71601182784 | Shop at ECS Tuning |
备注
- 已经终止 = 这个零件已经不再生产.
- +core = plus core charge (possibility of a return of the old part)
