随车工具/工具箱 for BMW 3 Series E46 318i (2001)

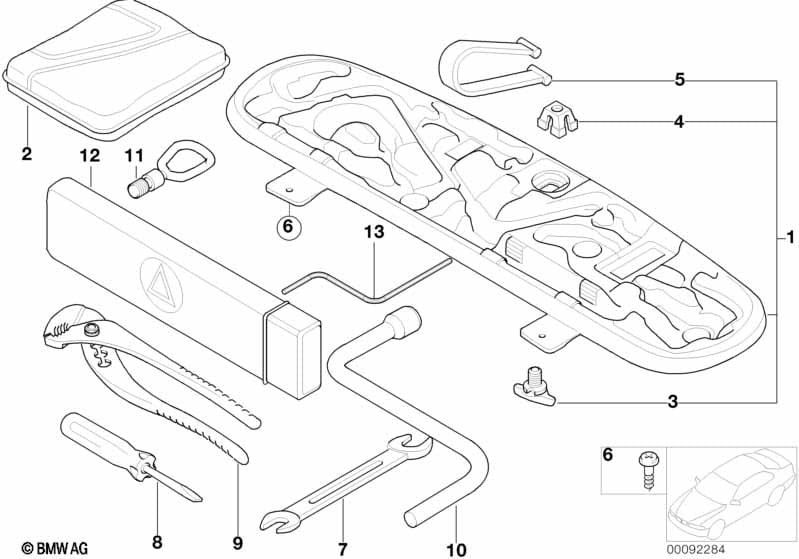

This 随车工具/工具箱 technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 工具箱 | 1 | 71111094903 | $56.56 | Shop at ECS Tuning | |||||
| 03 | 螺塞 | 1 | 71111179444 | $2.17 | Shop at ECS Tuning | |||||
| 04 | 螺纹修复件 | 1 | 71111179445 | $1.82 | Shop at ECS Tuning | |||||
| 05 | 定位条 | 1 | 71111095483 | $4.97 | Shop at ECS Tuning | |||||
| 06 | 自攻螺钉 | ST4,2X19 | 2 | 07149156627 | $0.18 | Shop at ECS Tuning | ||||
| 07 | 双开口扳手 | 8X10 | 1 | 71111112893 | $5.40 | Shop at ECS Tuning | ||||
| 07 | 双开口扳手 | 12-13 | 1 | 71111126148 | $5.90 | Shop at ECS Tuning | ||||
| 08 | 螺丝起子 | 1 | 71111179629 | $4.74 | Shop at ECS Tuning | |||||
| 09 | 水泵钳 | 1 | 71111179522 | $23.94 | Shop at ECS Tuning | |||||
| 10 | 曲柄 | 1 | 71121179953 | $14.56 | Shop at ECS Tuning | |||||
| 11 | 拖钩 | 1 | 72157203519 | $23.87 | Shop at ECS Tuning | |||||
| 12 | 警告用三角标志 带容器 | ECE R27 | 1 | 71606770487 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 318i 随车工具/工具箱?
- This technical diagram illustrates the 随车工具/工具箱 within the 零件和附件 (发动机和底盘) group for the 3 Series E46 318i produced during 2001. It provides a detailed exploded view of the components, identifying key parts such as the 工具箱 (Part #71111094903).
- Which models use the hardware listed in this 随车工具/工具箱?
- The hardware and components featured in the 随车工具/工具箱 are specific to the 3 Series E46 318i produced during 2001. These technical specifications ensure that parts like the 工具箱 (71111094903) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the 随车工具/工具箱 assembly?
- Each item in the 随车工具/工具箱 corresponds to the numbered list below the illustration. For the 3 Series E46 318i, you can identify the 工具箱 by locating its position on the schematic, which then links to the official BMW part number 71111094903 for the 零件和附件 (发动机和底盘) section.
