随车工具 / 车辆升降机 for BMW 3 Series E46 318i (2001)

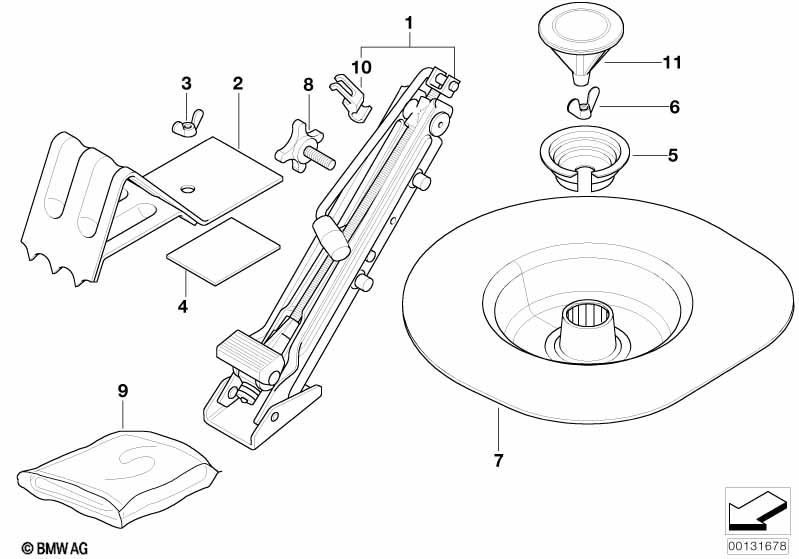

This 随车工具 / 车辆升降机 technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 铰接式车辆升降机 钢质 | 1 | 71126767944 | $83.07 | Shop at ECS Tuning | |||||
| 02 | 垫楔 钢制 | 1 | 71111179052 | $11.50 | 已经终止 | Shop at ECS Tuning | ||||
| 03 | 翼形螺帽 | M6 | 1 | 07119924038 | $0.34 | Shop at ECS Tuning | ||||
| 04 | 垫块 | L=100MM | 1 | 16111181918 | $1.65 | Shop at ECS Tuning | ||||
| 05 | 支架 备胎 | 1 | 71151180625 | $3.62 | Shop at ECS Tuning | |||||
| 06 | 翼形螺帽 | M8 | 1 | 71106781144 | $0.58 | Shop at ECS Tuning | ||||
| 07 | 杂物盒 备用轮胎 | 1 | 71111092276 | $17.21 | Shop at ECS Tuning | |||||
| 07 | 备胎坑 应急备用轮胎 | 1 | 71111094912 | $44.01 | Shop at ECS Tuning | |||||
| 仅适用于 17" 轮胎 | ||||||||||
| 07 | 杂物盒 备用轮胎 | 1 | 71111095393 | $16.91 | Shop at ECS Tuning | |||||
| 08 | 固定螺栓 | 1 | 71126755390 | $3.17 | Shop at ECS Tuning | |||||
| 10 | 夹子 车辆升降机 | 1 | 71126764999 | $5.57 | Shop at ECS Tuning | |||||
备注
- 已经终止 = 这个零件已经不再生产.
