后部安全带 for BMW 5 Series E12 520 (1981)

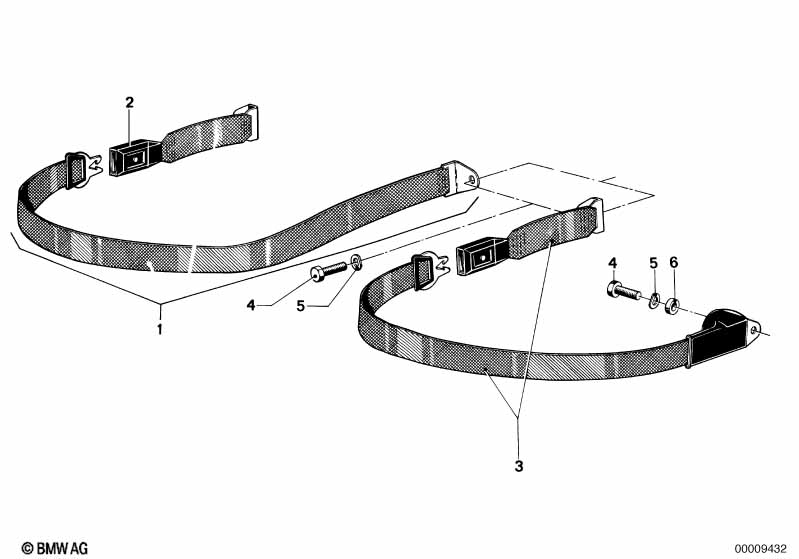

This 后部安全带 technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 520. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 中后部安全带 | AUTOFLUG | 1 | 72111868987 | $51.65 | 已经终止 | Shop at ECS Tuning |
备注
- 已经终止 = 这个零件已经不再生产.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 520 后部安全带?
- This technical diagram illustrates the 后部安全带 within the 零件和附件 (车身) group for the 5 Series E12 520 produced during 1981. It provides a detailed exploded view of the components, identifying key parts such as the 中后部安全带 (Part #72111868987).
- Which models use the hardware listed in this 后部安全带?
- The hardware and components featured in the 后部安全带 are specific to the 5 Series E12 520 produced during 1981. These technical specifications ensure that parts like the 中后部安全带 (72111868987) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the 后部安全带 assembly?
- Each item in the 后部安全带 corresponds to the numbered list below the illustration. For the 5 Series E12 520, you can identify the 中后部安全带 by locating its position on the schematic, which then links to the official BMW part number 72111868987 for the 零件和附件 (车身) section.
