安全带 安装件 后部 for BMW 5 Series E12 520 (1981)

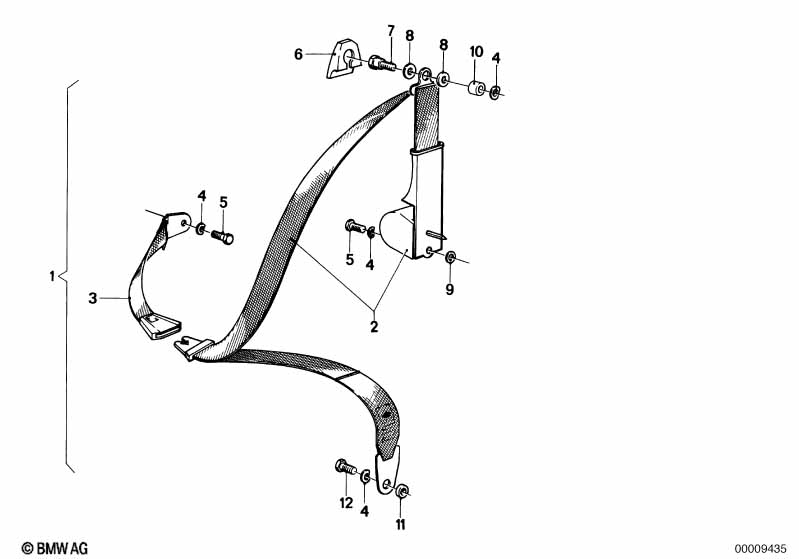

This 安全带 安装件 后部 technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 520. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 04 | 弹簧垫片 | 11,2 / 19 | 8 | 72111808672 | $0.17 | Shop at ECS Tuning | ||||
| 05 | 饰盖 | GRAENGES | 2 | 72111837677 | $3.12 | 已经终止 | Shop at ECS Tuning | |||
| 05 | 六角螺栓 | 7/16X30 | 4 | 72118157617 | $0.92 | Shop at ECS Tuning | ||||
| 06 | 饰盖 | SCHWARZ | 2 | 72111828567 | $3.11 | Shop at ECS Tuning | ||||
| 07 | 螺钉 | 2 | 72111845045 | $1.43 | 已经终止 | Shop at ECS Tuning | ||||
| 08 | 止推垫片 | 4 | 72111845046 | $0.22 | Shop at ECS Tuning | |||||
| 09 | 平垫圈 | 4 | 72111808673 | $0.37 | Shop at ECS Tuning | |||||
| 10 | 间隔套筒 | 2 | 72111802803 | $0.77 | Shop at ECS Tuning | |||||
| 11 | 间隔套筒 | 2 | 72111813915 | $0.72 | Shop at ECS Tuning | |||||
| 12 | 螺钉 | 2 | 72111805042 | 已经终止 | Shop at ECS Tuning |
备注
- 已经终止 = 这个零件已经不再生产.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 520 安全带 安装件 后部?
- This technical diagram illustrates the 安全带 安装件 后部 within the 零件和附件 (车身) group for the 5 Series E12 520 produced during 1981. It provides a detailed exploded view of the components, identifying key parts such as the 弹簧垫片 (Part #72111808672).
- Which models use the hardware listed in this 安全带 安装件 后部?
- The hardware and components featured in the 安全带 安装件 后部 are specific to the 5 Series E12 520 produced during 1981. These technical specifications ensure that parts like the 弹簧垫片 (72111808672) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the 安全带 安装件 后部 assembly?
- Each item in the 安全带 安装件 后部 corresponds to the numbered list below the illustration. For the 5 Series E12 520, you can identify the 弹簧垫片 by locating its position on the schematic, which then links to the official BMW part number 72111808672 for the 零件和附件 (车身) section.
