零件 侧壁电话天线 for BMW 7 Series E38 740i (1996)

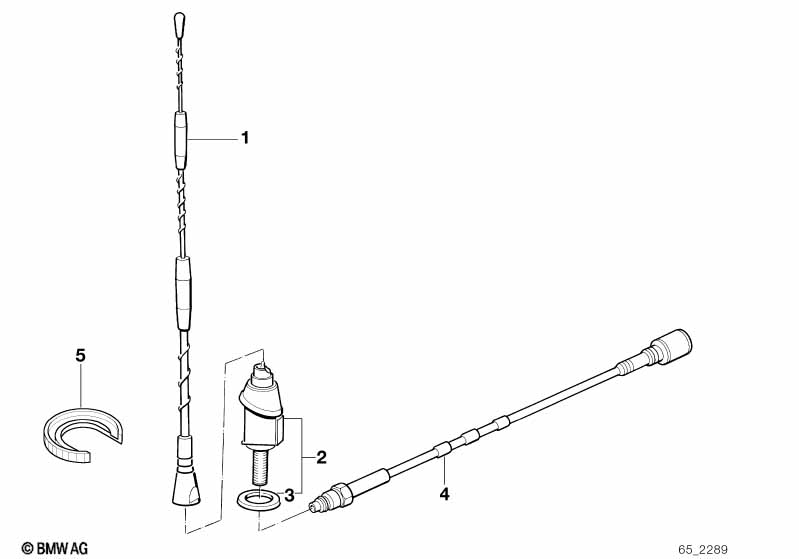

This 零件 侧壁电话天线 technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 天线辐射体 | D-NETZ 837MM | 1 | 84518360970 | $145.63 | 已经终止, +core | Shop at ECS Tuning | |||
| 02 | 天线座 | D-NETZ | 1 | 84518361430 | $93.47 | 已经终止, +core | Shop at ECS Tuning | |||
| 03 | 密封环 | 1 | 84518361235 | Shop at ECS Tuning | ||||||
| 04 | 天线导线 | D-NETZ 710MM | 1 | 65618352490 | $18.75 | 已经终止 | Shop at ECS Tuning | |||
| 05 | 天线扳手 | 1 | 84549404727 | $1.34 | 已经终止 | Shop at ECS Tuning |
备注
- 已经终止 = 这个零件已经不再生产.
- +core = plus core charge (possibility of a return of the old part)
