远程通信箱 for BMW 7 Series G12 730LdX (2018)

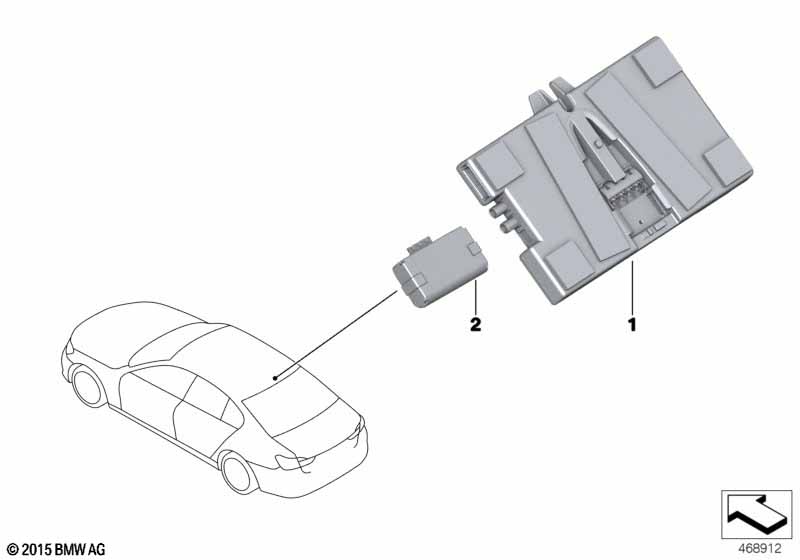

This 远程通信箱 technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 730LdX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | 订购和安装一个 已设码的远程信息处理控制单元 会导致当前安装的 SIM 卡 退出工作。ConnectedDrive 和 Teleservice 服务于是只能 通过新的控制单元执行。 订购的控制单元不能在 其它车辆中，而只能在该车辆中 工作！ 用于车辆及 国家规格 中国 和 各国特殊规定 巴西 00464 和 国别定制控制单元 香港 / 澳门 04142 和 国家控制 俄罗斯 10323 和 供应商控制 远程信息处理 |
L8AAA=否 S8LBA=否 S8LHA=否 S8LRA=否 S8SXA=否 |
||||||||
| 用于车辆及 Teleservices 和 WLAN Hotspot 注意！蓄电池不是远程信息处理 通信盒的组成部分， 必要时，必须分开订购！ |
S6AEA=是 S6WDA=否 |
|||||||||
| 01 | 第 2 代远程通信盒 | 4G ECE | 1 | 84109843930 | Shop at ECS Tuning | |||||
| 用于车辆及 Teleservices 和 WLAN Hotspot 注意！蓄电池不是远程信息处理 通信盒的组成部分， 必要时，必须分开订购！ |
S6AEA=是 S6WDA=是 |
|||||||||
| 01 | 第 2 代远程通信盒 | 4G ECE WLAN | 1 | 84109843935 | Shop at ECS Tuning | |||||
| 注意维修说明 | ||||||||||
| 02 | 蓄电池 | TCB DACH | 1 | 84102447710 | Shop at ECS Tuning | |||||
