个性化的皮腔 for BMW 3 Series E46 320i (2004)

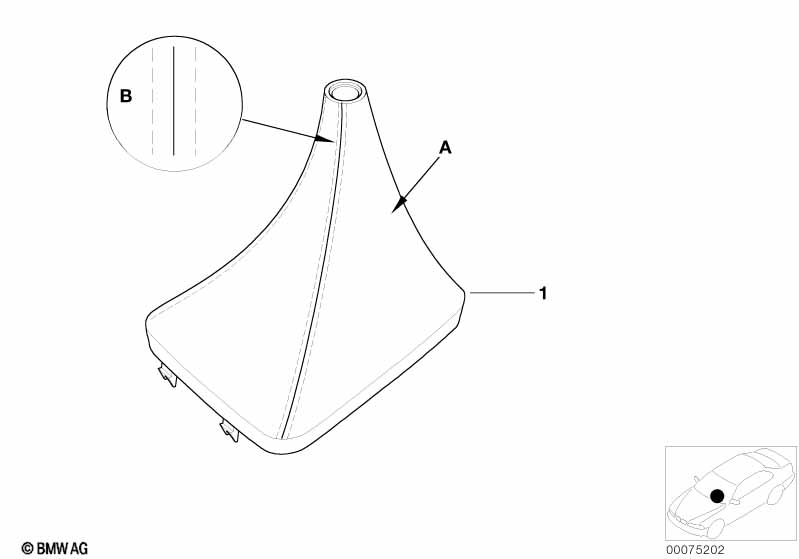

This 个性化的皮腔 technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | 只适用于 独特的车辆 带内饰代码 Z1XX 或者 SA 940 = 特殊要求概述 --------------------------- 注意！ 系列部件 不能使用这些订购号码 --------------------------- 参考部件 系列： 1 434 426 LL 1 434 427 RL 1 434 709 LL 四轮驱动 --------------------------- --------------------------- 订购时下列 说明是必要的： - 零件号码 - 代理商号码 - 底盘号码 - ( A ) 颜色说明 皮革 - ( B ) 颜色说明 丝线织物 |
|||||||||
| 01 | 皮腔 | 1 | 25118014118 | $76.45 | 已经终止, NoS | Shop at ECS Tuning | ||||
| 用于车辆及 四轮驱动 |
S203A=是 |
|||||||||
| 01 | 皮腔 | 1 | 06/2000 | 25118016457 | $76.45 | 已经终止, NoS | Shop at ECS Tuning | |||
备注
- 已经终止 = 这个零件已经不再生产.
- NoS = No Stock (部件 未集中安置)
