个性化的木材 维修套件 for BMW 7 Series E38 728i (2001)

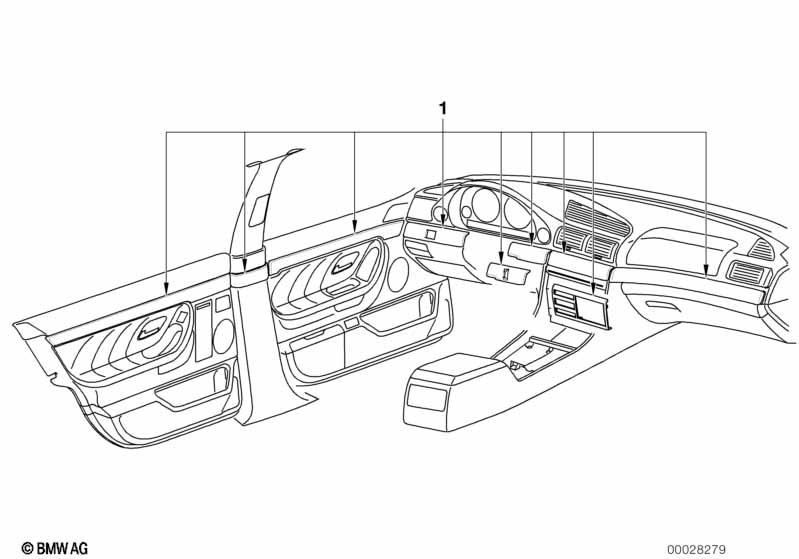

This 个性化的木材 维修套件 technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | 仅适用于 个性化车辆 带 SA 940 --------------------------- 注意！ 维修 / 服务套件： 单个组件 不能退回。 --------------------------- 套件由下列组件组成： 1. 木制饰条 外部 I 板 2. 木制饰条 中部 I 板 带铣削 3. 木制饰条 中部 I 板 无铣削 4. 木制饰条 盖板 收音机 5. 木制饰板 车载显示器 6. 木制饰板 外部 I 板 7. 木制饰条 前车门 左和右 8. 木制饰条 后车门 左和右 9. 木制饰条 B 柱 左和右 --------------------------- 木制饰条 B 柱 仅安装至 750i/iL --------------------------- 从2000 年 9 月起的 车载显示器饰板无效 (16:9 的屏幕) 为此可以使用 带有收音机挡板或车载显示器挡板 的组件。 --------------------------- |
|||||||||
| 用于车辆及 右座驾驶 仅适用于短车型 |
=是 |
|||||||||
| 01 | 组件 木制饰条 | NUßB./INTARSIEN | 1 | 51450009168 | 已经终止, NoS | Shop at ECS Tuning | ||||
| 01 | 组件 木制饰条 | BIRKE ANTHRAZIT | 1 | 51450009169 | 已经终止, NoS | Shop at ECS Tuning | ||||
| 01 | 组件 木制饰条 | BIRKE BLAU | 1 | 51450009170 | 已经终止, NoS | Shop at ECS Tuning | ||||
| 01 | 组件 木制饰条 | ARIZONA SUN | 1 | 51450009171 | 已经终止, NoS | Shop at ECS Tuning | ||||
| 01 | 组件 木制饰条 | ENGLISCHROT | 1 | 51450009172 | 已经终止, NoS | Shop at ECS Tuning | ||||
| 01 | 组件 木制饰条 | BRUYERE CLUB | 1 | 51450009173 | 已经终止, NoS | Shop at ECS Tuning | ||||
| 01 | 组件 木制饰条 | OLIV | 1 | 51450009174 | 已经终止, NoS | Shop at ECS Tuning | ||||
| 01 | 组件 木制饰条 | EIBE CLUB | 1 | 51450009175 | 已经终止, NoS | Shop at ECS Tuning | ||||
| 01 | 组件 木制饰条 | PAPPEL NATUR | 1 | 51450009176 | 已经终止, NoS | Shop at ECS Tuning | ||||
备注
- 已经终止 = 这个零件已经不再生产.
- NoS = No Stock (部件 未集中安置)
