个性化 饮料杯架 已镶上皮革 for BMW 5 Series E60 520d (2005)

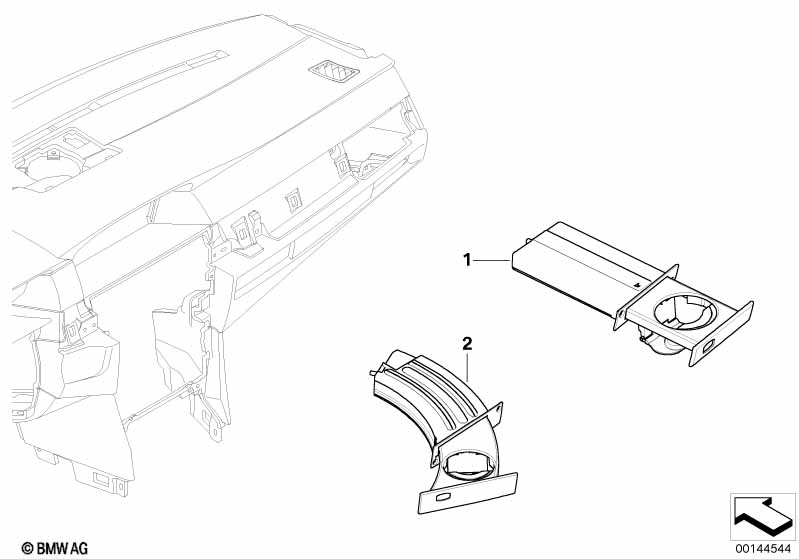

This 个性化 饮料杯架 已镶上皮革 technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | 仅适用于 个性化车辆 带内饰代码 Z1XX ---------------------------------------- 个性化车辆也 安装有批量零件。 应先确保 需要的备件不是批量 零件。 --------------------------- 用于车辆及 饮料杯架 |
S442A=是 |
||||||||
| 皮革饰板 | ||||||||||
| 01 | 饮料杯架 外部 | SCHWARZ | 1 | 09/2004 | 51168040514 | Shop at ECS Tuning | ||||
| 02 | 饮料杯架 内部 | SCHWARZ | 1 | 09/2004 | 51168040506 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 520d 个性化 饮料杯架 已镶上皮革?
- This technical diagram illustrates the 个性化 饮料杯架 已镶上皮革 within the 个性化装备 group for the 5 Series E60 520d produced during 2005. It provides a detailed exploded view of the components, identifying key parts such as the 饮料杯架 外部 (Part #51168040514).
- Which models use the hardware listed in this 个性化 饮料杯架 已镶上皮革?
- The hardware and components featured in the 个性化 饮料杯架 已镶上皮革 are specific to the 5 Series E60 520d produced during 2005. These technical specifications ensure that parts like the 饮料杯架 外部 (51168040514) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the 个性化 饮料杯架 已镶上皮革 assembly?
- Each item in the 个性化 饮料杯架 已镶上皮革 corresponds to the numbered list below the illustration. For the 5 Series E60 520d, you can identify the 饮料杯架 外部 by locating its position on the schematic, which then links to the official BMW part number 51168040514 for the 个性化装备 section.
