排氣歧管 for BMW 3 Series E36 325i (1992)

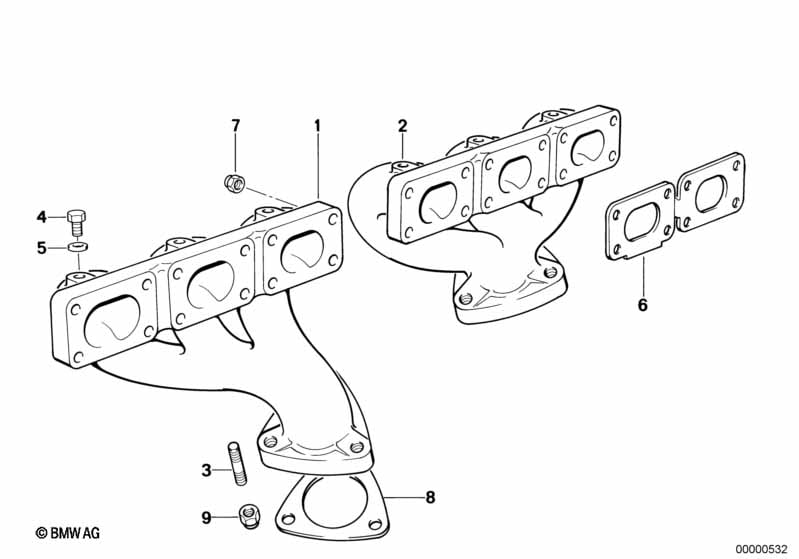

This 排氣歧管 technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| 號碼. | 敘述 | 補充 | 數量 | 從 | 最高至 | 零件料號 | 價錢 | 備註 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 前部排氣歧管 | 1 | 11621716736 | $328.47 | Shop at ECS Tuning | |||||
| 02 | 後部排氣歧管 | 1 | 11621716739 | $271.19 | 已不供應 | Shop at ECS Tuning | ||||
| 03 | 雙頭螺栓 | M10X35 | 6 | 11621708999 | $2.20 | Shop at ECS Tuning | ||||
| 04 | 螺塞 | AM14X1,5 | 2 | 07119909704 | Shop at ECS Tuning | |||||
| 05 | 密封環 | A14X18-CU | 2 | 07119963201 | $0.18 | Shop at ECS Tuning | ||||
| 06 | 密封件 | 3 | 11621728984 | Shop at ECS Tuning | ||||||
| 維修需要 | ||||||||||
| -- | 六角螺母 | 24 | 11721437202 | $0.72 | Shop at ECS Tuning | |||||
| 07 | 六角螺母 | X | 11721437202 | $0.72 | Shop at ECS Tuning | |||||
| 08 | 密封件 不含石棉 | 2 | 18301716888 | $11.75 | Shop at ECS Tuning | |||||
| 維修需要 | ||||||||||
| -- | 六角螺母 | M10 | 6 | 18301737774 | $1.65 | Shop at ECS Tuning | ||||
| 09 | 六角螺母 | M10 | 6 | 18301737774 | $1.65 | Shop at ECS Tuning | ||||
備註
- 已不供應 = 此零件已停產
