氣缸蓋 Vanos for BMW 3 Series E36 M3 (1993)

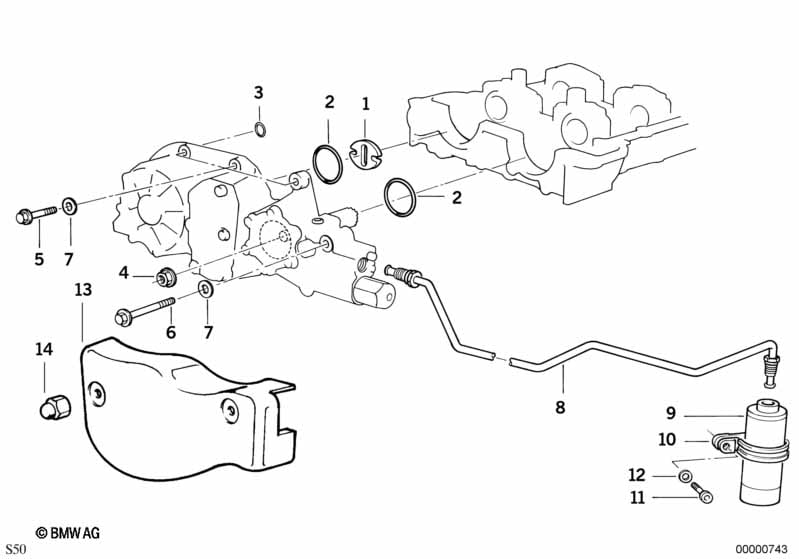

This 氣缸蓋 Vanos technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| 號碼. | 敘述 | 補充 | 數量 | 從 | 最高至 | 零件料號 | 價錢 | 備註 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 從動件 | 1 | 11311317308 | $52.60 | Shop at ECS Tuning | |||||
| 02 | O 形環 | 57,0X3,0MM | 2 | 11311317732 | $5.46 | Shop at ECS Tuning | ||||
| 03 | O 形環 | 10,0X2,0MM | 1 | 11311317318 | $1.27 | Shop at ECS Tuning | ||||
| 04 | 帶肩螺母 | M6 | 1 | 11361313170 | $5.18 | Shop at ECS Tuning | ||||
| 05 | ISA 螺栓 | M6X25-8.8-ZNS3 | 6 | 07129903807 | $1.74 | Shop at ECS Tuning | ||||
| 06 | 六角螺栓 | M6X45 8.8 ZNS3 | 1 | 07119902976 | $0.45 | Shop at ECS Tuning | ||||
| 07 | 平墊圈 | A6,4-ZNNIV SI | 7 | 07119904202 | Shop at ECS Tuning | |||||
| 08 | 高壓管路 | 1 | 11361404986 | $31.43 | Shop at ECS Tuning | |||||
| 09 | 蓄壓器 | 1 | 11311317124 | $279.40 | Shop at ECS Tuning | |||||
| 10 | 夾圈 | 2 | 11311318306 | $3.32 | 已不供應 | Shop at ECS Tuning | ||||
| 11 | ISA 螺栓 | M8X16-8.8-ZNS3 | 2 | 07129903984 | $1.96 | Shop at ECS Tuning | ||||
| 12 | 平墊圈 | 8-200-ZNS3 | 2 | 07119904826 | $0.40 | Shop at ECS Tuning | ||||
| 13 | 蓋板 | 1 | 11311318122 | $16.37 | Shop at ECS Tuning | |||||
| 14 | 固定螺帽 | M6 | 2 | 18121454534 | $4.23 | Shop at ECS Tuning |
備註
- 已不供應 = 此零件已停產
