正時機構正時鏈 for BMW 3 Series E36 318ti

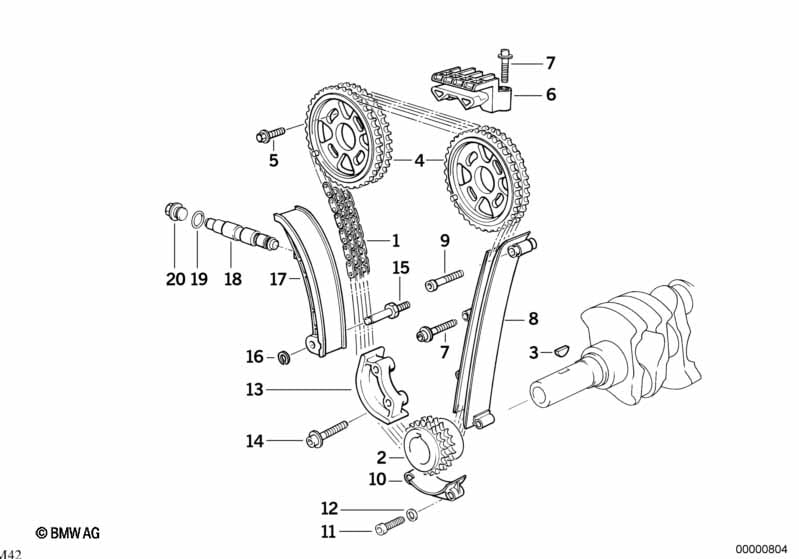

This 正時機構正時鏈 technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318ti. It includes part names, part numbers and all associated mounting hardware.
| 號碼. | 敘述 | 補充 | 數量 | 從 | 最高至 | 零件料號 | 價錢 | 備註 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 正時鏈 | 1 | 11311739480 | Shop at ECS Tuning | ||||||
| 02 | 鏈輪 | 1 | 11211247338 | $62.77 | Shop at ECS Tuning | |||||
| 03 | 半圓鍵 | 5X6.5 | 1 | 07119951480 | $0.88 | Shop at ECS Tuning | ||||
| 04 | 鏈輪 | 2 | 11311727446 | 已不供應 | Shop at ECS Tuning | |||||
| 05 | 六角螺栓及平墊圈 | M7X20-U1 | 8 | 07119906642 | Shop at ECS Tuning | |||||
| 06 | 滑軌 | 1 | 11311721641 | $16.11 | Shop at ECS Tuning | |||||
| 07 | 圓頭螺釘 | M6X35-Z1 | 5 | 07119919824 | Shop at ECS Tuning | |||||
| 08 | 導軌 | 1 | 11311247483 | Shop at ECS Tuning | ||||||
| 09 | 圓頭螺釘 | M6X45-8.8-ZNS | 1 | 07119920123 | $0.60 | Shop at ECS Tuning | ||||
| 10 | 導嚮裝置 | 1 | 11311734694 | $16.28 | Shop at ECS Tuning | |||||
| 11 | ISA 螺栓 | M6X25-8.8-ZNS3 | 2 | 07129903807 | $1.74 | Shop at ECS Tuning | ||||
| 12 | 平墊圈 | A6,4-ZNNIV SI | 2 | 07119904202 | Shop at ECS Tuning | |||||
| 13 | 彎軌 | 1 | 11311739130 | $14.53 | Shop at ECS Tuning | |||||
| 14 | 圓頭螺釘 | M6X35-Z1 | 2 | 07119919824 | Shop at ECS Tuning | |||||
| 15 | 承載軸銷 | 1 | 09/1995 | 11311721322 | $20.83 | Shop at ECS Tuning | ||||
| 16 | 防鬆墊片 | 8,0 | 1 | 09/1995 | 07119932863 | $0.11 | Shop at ECS Tuning | |||
| 17 | 張緊導軌 | 1 | 09/1995 | 11311727342 | $95.44 | Shop at ECS Tuning | ||||
| 17 | 張緊導軌 | 1 | 09/1995 | 11311743262 | $74.43 | Shop at ECS Tuning | ||||
| 僅連接 | ||||||||||
| -- | 軸套 | 1 | 09/1995 | 11311247452 | $5.98 | Shop at ECS Tuning | ||||
| -- | 六角螺栓 | M8X50 | 1 | 09/1995 | 07119904533 | $2.84 | Shop at ECS Tuning | |||
| -- | 平墊圈 | 8,4X16X1,6-ZNNV | 1 | 09/1995 | 07119907030 | Shop at ECS Tuning | ||||
| 18 | 鏈條張緊器 | 1 | 11311743187 | $61.43 | Shop at ECS Tuning | |||||
| 19 | 密封環 | A22X27-AL | 1 | 07119963355 | $0.36 | Shop at ECS Tuning | ||||
| 20 | 螺塞 | 1 | 11311721579 | $3.15 | Shop at ECS Tuning | |||||
備註
- 已不供應 = 此零件已停產
