氣缸蓋 for BMW 3 Series G28 大型豪華轎車 LCI 320Li (2021)

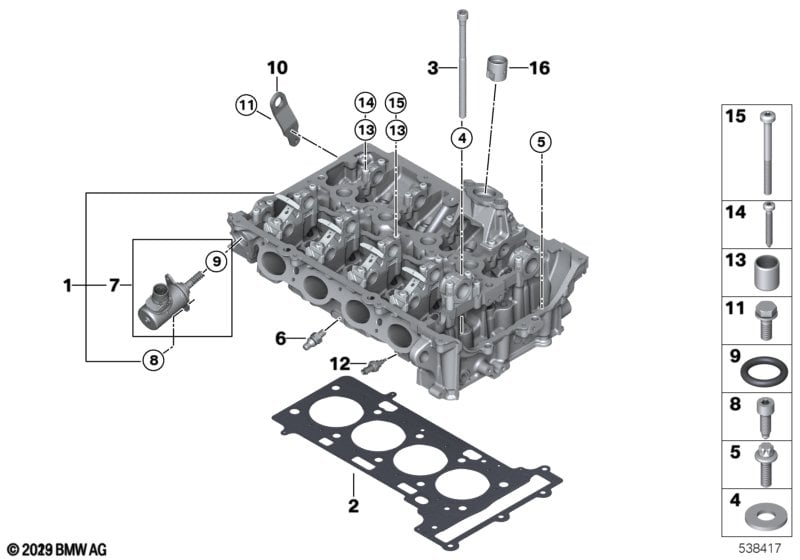

This 氣缸蓋 technical drawing provides a detailed breakdown of the assembly for the 3 Series G28 大型豪華轎車 LCI 320Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| 號碼. | 敘述 | 補充 | 數量 | 從 | 最高至 | 零件料號 | 價錢 | 備註 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 氣缸蓋及氣門機構 | 1 | 11121021715 | Shop at ECS Tuning | ||||||
| 僅連接 | ||||||||||
| -- | 圓柱銷 | 4X16MM | 1 | 07119942082 | Shop at ECS Tuning | |||||
| 02 | 氣缸蓋密封件 | 0,80MM | 1 | 11128481576 | Shop at ECS Tuning | |||||
| 02 | 氣缸蓋密封件 | 1,10MM (+0,3) | 1 | 11128481577 | Shop at ECS Tuning | |||||
| 03 | 氣缸蓋螺栓 | M11X188 | 10 | 11128644674 | Shop at ECS Tuning | |||||
| 04 | 平墊圈 | 10 | 11127583138 | $6.05 | Shop at ECS Tuning | |||||
| 05 | 螺栓 | M8X40 | 5 | 07119907475 | Shop at ECS Tuning | |||||
| 06 | 排氣管接頭 帶 O 形環 | 1 | 11128626622 | Shop at ECS Tuning | ||||||
| 07 | 伺服馬達 | 1 | 11378652738 | Shop at ECS Tuning | ||||||
| 08 | ISA 螺栓 | M6X16-8.8-ZNNIV | 2 | 07129905536 | $0.64 | Shop at ECS Tuning | ||||
| 09 | 軸密封環 | 1 | 11378662525 | Shop at ECS Tuning | ||||||
| 10 | 小環 | 1 | 11127638711 | Shop at ECS Tuning | ||||||
| 11 | 六角螺栓及平墊圈 | M8X22 | 2 | 07119905739 | $0.62 | Shop at ECS Tuning | ||||
| 12 | 冷卻液 / 機油溫度感測器 | 1 | 13627580635 | Shop at ECS Tuning | ||||||
| 13 | 空心定位銷 | D=7,5MM | 15 | 11127606504 | Shop at ECS Tuning | |||||
| 注意！ 遵守維修說明中的規定。螺栓連接過程經過修改。 |
||||||||||
| 14 | 平頭螺栓 | M6X35-10.9 | 18 | 07119909683 | Shop at ECS Tuning | |||||
| 15 | 平頭螺栓 | M6X65-10.9 | 9 | 07149844207 | Shop at ECS Tuning | |||||
| 16 | 挺桿 | 1 | 11328629250 | Shop at ECS Tuning | ||||||
