點火導線束/火花塞 for BMW 5 Series E34 535i

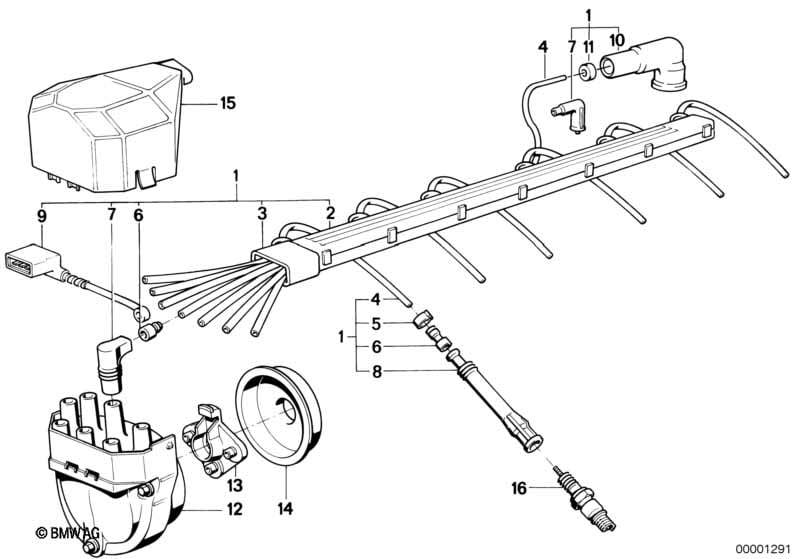

This 點火導線束/火花塞 technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 535i. It includes part names, part numbers and all associated mounting hardware.
| 號碼. | 敘述 | 補充 | 數量 | 從 | 最高至 | 零件料號 | 價錢 | 備註 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 點火電線束 | 1 | 10/1988 | 12121722253 | $311.62 | Shop at ECS Tuning | ||||
| 01 | 點火電線束 | 1 | 10/1988 | 12121716939 | $347.25 | Shop at ECS Tuning | ||||
| 01 | 點火線束 帶防盜裝置 | 1 | 10/1988 | 12121730961 | 已不供應 | Shop at ECS Tuning | ||||
| 僅適用於 | ||||||||||
| -- | 點火線圈 | X | 10/1988 | 12131286087 | $114.46 | Shop at ECS Tuning | ||||
| 01 | 點火線束 帶防盜裝置 | 1 | 10/1988 | 12121730017 | $357.95 | 已不供應 | Shop at ECS Tuning | |||
| 僅適用於 | ||||||||||
| -- | 點火線圈 | X | 10/1988 | 12131720877 | $84.65 | 已不供應 | Shop at ECS Tuning | |||
| 03 | 絕緣軟管 | B25X1,2 | 1 | 07119975352 | $4.72 | 已不供應 | Shop at ECS Tuning | |||
| 04 | 點火線 | X | 12121705675 | $11.91 | +料件本體費. | Shop at ECS Tuning | ||||
| 05 | 標識環 | ZYL.1 | 2 | 12121706186 | $0.60 | Shop at ECS Tuning | ||||
| 05 | 標識環 | ZYL.2 | 2 | 12121706187 | $0.60 | Shop at ECS Tuning | ||||
| 05 | 標識環 | ZYL.3 | 2 | 12121706188 | $0.60 | Shop at ECS Tuning | ||||
| 05 | 標識環 | ZYL.4 | 2 | 12121706189 | $0.60 | Shop at ECS Tuning | ||||
| 05 | 標識環 | ZYL.5 | 2 | 12121706190 | $0.60 | Shop at ECS Tuning | ||||
| 05 | 標識環 | ZYL.6 | 2 | 12121706191 | $0.60 | 已不供應 | Shop at ECS Tuning | |||
| 06 | 圓插頭 | X | 12121705656 | $1.73 | +料件本體費. | Shop at ECS Tuning | ||||
| 07 | 抗乾擾插頭 | 7 | 12121289828 | Shop at ECS Tuning | ||||||
| 08 | 火花塞插頭 | 6 | 12121289824 | Shop at ECS Tuning | ||||||
| 09 | 脈衝傳感器 | 1 | 12121722571 | Shop at ECS Tuning | ||||||
| 10 | 護罩 | 1 | 09/1988 | 12131720911 | $8.35 | Shop at ECS Tuning | ||||
| 10 | 護罩 | 1 | 09/1988 | 12121727606 | Shop at ECS Tuning | |||||
| 11 | 密封環 | 1 | 12121722431 | $4.40 | 已不供應 | Shop at ECS Tuning | ||||
| 12 | 分電器蓋 | 1 | 12111715905 | Shop at ECS Tuning | ||||||
| 13 | 分電器轉子 | 1 | 12111715906 | Shop at ECS Tuning | ||||||
| 14 | 蓋罩 | 1 | 12111277194 | 已不供應 | Shop at ECS Tuning | |||||
| 15 | 護罩 | 1 | 12121716299 | $13.37 | Shop at ECS Tuning | |||||
| 16 | 火花塞 | BOSCH W8 LPR | 6 | 12121721895 | $8.38 | 已不供應, SI 121089133 | Shop at ECS Tuning | |||
| 16 | 火花塞 | BOSCH W8 LCR | 6 | 12129061869 | $8.38 | SI 121089133 | Shop at ECS Tuning | |||
備註
- 已不供應 = 此零件已停產
- +core = 加上料件本體費費用 (舊零件有可能回收)
- SI = Service-Information (服務信息)
