化油器 - 噴嘴和泵 for BMW 2500-3.3Li 3.0S

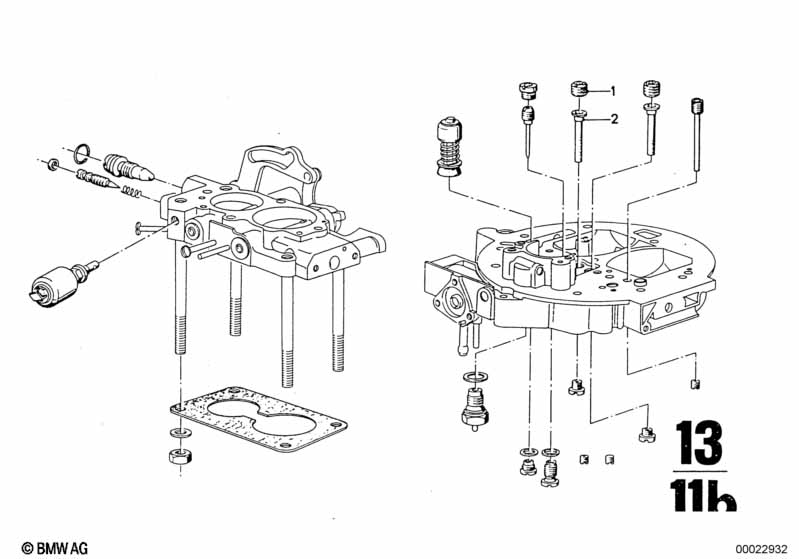

This 化油器 - 噴嘴和泵 technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0S. It includes part names, part numbers and all associated mounting hardware.
| 號碼. | 敘述 | 補充 | 數量 | 從 | 最高至 | 零件料號 | 價錢 | 備註 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 空氣修正噴嘴 檔 I | 80 | 2 | 08/1968 | 02/1977 | 13111253057 | 已不供應 | Shop at ECS Tuning | ||
| 01 | 空氣修正噴嘴 檔 II | 100 | 2 | 09/1973 | 02/1977 | 13111253058 | $99.60 | 已不供應 | Shop at ECS Tuning | |
| 02 | 混合管 檔 1 | 6S | 2 | 04/1969 | 02/1977 | 13111253062 | 已不供應 | Shop at ECS Tuning | ||
| 02 | 混合管 檔 1 | 6S | 2 | 09/1973 | 02/1977 | 13111258882 | 已不供應 | Shop at ECS Tuning |
備註
- 已不供應 = 此零件已停產
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.0S 化油器 - 噴嘴和泵?
- This technical diagram illustrates the 化油器 - 噴嘴和泵 within the 混合氣製備和調節裝置 group for the 2500-3.3Li 3.0S. It provides a detailed exploded view of the components, identifying key parts such as the 空氣修正噴嘴 檔 I (Part #13111253057).
- Which models use the hardware listed in this 化油器 - 噴嘴和泵?
- The hardware and components featured in the 化油器 - 噴嘴和泵 are specific to the 2500-3.3Li 3.0S. These technical specifications ensure that parts like the 空氣修正噴嘴 檔 I (13111253057) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the 化油器 - 噴嘴和泵 assembly?
- Each item in the 化油器 - 噴嘴和泵 corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.0S, you can identify the 空氣修正噴嘴 檔 I by locating its position on the schematic, which then links to the official BMW part number 13111253057 for the 混合氣製備和調節裝置 section.
