燃油箱/安裝件 for BMW 3 Series E21 320i

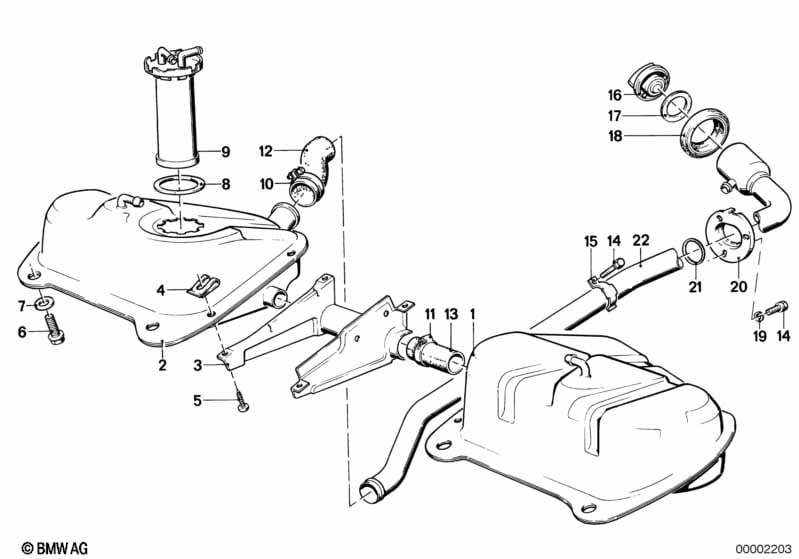

This 燃油箱/安裝件 technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware.
| 號碼. | 敘述 | 補充 | 數量 | 從 | 最高至 | 零件料號 | 價錢 | 備註 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | 用於車輛及 國家規格 澳大利亞 |
L810A=岆 |
||||||||
| 01 | 左燃油箱 | 1 | 08/1977 | 04/1978 | 16111151529 | $298.96 | Shop at ECS Tuning | |||
| 02 | 右燃油箱 | 1 | 08/1977 | 04/1978 | 16111120200 | $298.96 | 已不供應 | Shop at ECS Tuning | ||
| 03 | 防護板 | 1 | 08/1977 | 04/1978 | 16121120206 | $19.42 | 已不供應 | Shop at ECS Tuning | ||
| 04 | 鋼板螺母 | B6,3-6 | 4 | 08/1977 | 04/1978 | 16111152613 | $0.35 | Shop at ECS Tuning | ||
| 05 | 六角鋼板螺栓 | ST6,3X16-R-U2-Z | 4 | 08/1977 | 04/1978 | 07119905017 | $0.38 | Shop at ECS Tuning | ||
| 06 | 六角螺栓 | M8X16-8.8-ZNS3 | 6 | 08/1977 | 04/1978 | 07119902900 | $0.36 | Shop at ECS Tuning | ||
| 07 | 平墊圈 | A8,4 | 6 | 08/1977 | 04/1978 | 33311108205 | $0.16 | Shop at ECS Tuning | ||
| 08 | O 形環 | D=58,8X4,2 | 1 | 08/1977 | 04/1978 | 16111744369 | $1.68 | Shop at ECS Tuning | ||
| 09 | 燃油位傳感器 用於金屬油箱 | 1 | 08/1977 | 04/1978 | 16121114255 | $190.34 | 已不供應 | Shop at ECS Tuning | ||
| 10 | 軟管卡箍 | L42-48 | 2 | 08/1977 | 04/1978 | 07129952119 | $1.15 | Shop at ECS Tuning | ||
| 11 | 軟管卡箍 | L37-43 | 2 | 08/1977 | 04/1978 | 07129952117 | $1.09 | Shop at ECS Tuning | ||
| 12 | 軟管 | 1 | 08/1977 | 04/1978 | 16121176793 | $34.38 | Shop at ECS Tuning | |||
| 13 | 軟管 | 1 | 08/1977 | 04/1978 | 16121176795 | $24.82 | Shop at ECS Tuning | |||
| 14 | 六角螺栓及平墊圈 | M6X16-U1-8.8 | 4 | 08/1977 | 04/1978 | 07119904524 | $0.25 | Shop at ECS Tuning | ||
| 15 | 夾箍 | 1 | 08/1977 | 04/1978 | 16121115267 | $0.38 | 已不供應 | Shop at ECS Tuning | ||
| 16 | 油箱蓋 不能閉鎖 | 1 | 08/1977 | 04/1978 | 16111116781 | $9.74 | 已不供應 | Shop at ECS Tuning | ||
| 17 | 橡膠密封件 | 1 | 08/1977 | 04/1978 | 16111179680 | $6.70 | Shop at ECS Tuning | |||
| 18 | 橡膠密封件 | 1 | 08/1977 | 04/1978 | 16111105721 | $6.83 | 已不供應 | Shop at ECS Tuning | ||
| 19 | 密封環 | 3 | 08/1977 | 04/1978 | 51131808112 | $0.44 | Shop at ECS Tuning | |||
| 20 | 法蘭 | 1 | 08/1977 | 04/1978 | 16121114977 | $1.97 | 已不供應 | Shop at ECS Tuning | ||
| 21 | 密封件 | 1 | 08/1977 | 04/1978 | 16121114976 | $1.60 | Shop at ECS Tuning | |||
| 22 | 加油管 | 1 | 08/1977 | 04/1978 | 16121121813 | $90.79 | 已不供應 | Shop at ECS Tuning | ||
| 僅連接 | ||||||||||
| -- | 油箱蓋 不能閉鎖 | 1 | 08/1977 | 04/1978 | 16111118379 | $6.94 | Shop at ECS Tuning | |||
備註
- 已不供應 = 此零件已停產
