燃油箱/安裝件 for BMW 3 Series E46 320d (2001)

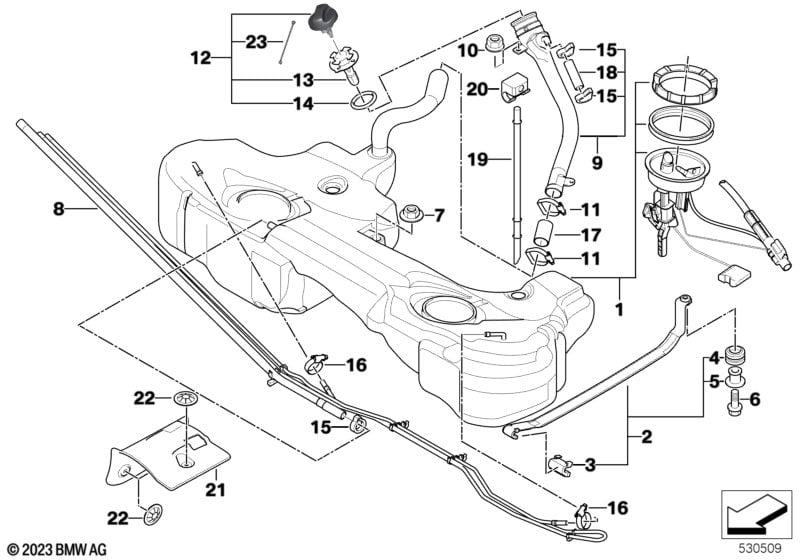

This 燃油箱/安裝件 technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| 號碼. | 敘述 | 補充 | 數量 | 從 | 最高至 | 零件料號 | 價錢 | 備註 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 燃油箱 塑料 帶傳感器 左側 | 1 | 16126768482 | 已不供應 | Shop at ECS Tuning | |||||
| 02 | 夾緊箍 | 2 | 16116756583 | $26.17 | Shop at ECS Tuning | |||||
| 03 | 減震橡膠墊 | 2 | 16111184018 | $17.35 | Shop at ECS Tuning | |||||
| 04 | 橡膠密封圈 | 2 | 16111182454 | $0.93 | Shop at ECS Tuning | |||||
| 05 | 間隔套筒 | 2 | 16117194458 | $3.23 | Shop at ECS Tuning | |||||
| 06 | 六角螺栓及平墊圈 | M8X30-ZNNIV SI | 2 | 07119905532 | $1.25 | Shop at ECS Tuning | ||||
| 07 | 六角螺母 | M8-8-ZNS3 | 1 | 07146760121 | $1.09 | Shop at ECS Tuning | ||||
| 08 | 通風管 燃油 | 1 | 16117176552 | $50.70 | +料件本體費. | Shop at ECS Tuning | ||||
| 10 | 塑料螺母 | 2 | 51711958025 | $0.26 | Shop at ECS Tuning | |||||
| 11 | 軟管卡箍 | L42-48 | 2 | 07129952119 | $1.15 | Shop at ECS Tuning | ||||
| 12 | 油箱蓋 | 1 | 16117193372 | Shop at ECS Tuning | ||||||
| 13 | 銷 | 1 | 16111184156 | $0.62 | 已不供應 | Shop at ECS Tuning | ||||
| 14 | 橡膠密封件 | 1 | 16116755071 | $1.92 | 已不供應 | Shop at ECS Tuning | ||||
| 15 | 軟管夾頭 | 23,9-27,1 | 2 | 11631716970 | $0.79 | Shop at ECS Tuning | ||||
| 16 | 軟管卡箍 | L12-15 | 2 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 17 | 燃油軟管 | 40X47X170 | 1 | 16111183758 | Shop at ECS Tuning | |||||
| 18 | 燃油軟管 | 18X24X80 | 1 | 16116772292 | $10.13 | 已不供應 | Shop at ECS Tuning | |||
| 用於車輛及 自動變速箱 |
S205A=瘁 |
|||||||||
| 21 | 燃油箱防護板 | 1 | 11/2002 | 16111183924 | $21.41 | 已不供應 | Shop at ECS Tuning | |||
| 用於車輛及 自動變速箱 |
S205A=岆 |
|||||||||
| 21 | 燃油箱防護板 | 1 | 16111183924 | $21.41 | 已不供應 | Shop at ECS Tuning | ||||
| 用於車輛及 自動變速箱 |
S205A=瘁 |
|||||||||
| 22 | 彈簧螺母 | 3 | 11/2002 | 16117196643 | 已不供應 | Shop at ECS Tuning | ||||
| 22 | 防松環 | 3 | 11/2002 | 64118247773 | $0.40 | Shop at ECS Tuning | ||||
| 用於車輛及 自動變速箱 |
S205A=岆 |
|||||||||
| 22 | 防松環 | 3 | 64118247773 | $0.40 | Shop at ECS Tuning | |||||
| 23 | 緊固帶 | 1 | 16116754637 | Shop at ECS Tuning | ||||||
| 僅適用於 | ||||||||||
| -- | 油箱蓋 | X | 16117193372 | Shop at ECS Tuning | ||||||
備註
- 已不供應 = 此零件已停產
- +core = 加上料件本體費費用 (舊零件有可能回收)
