排氣系統 for BMW 6 Series E24 633CSi

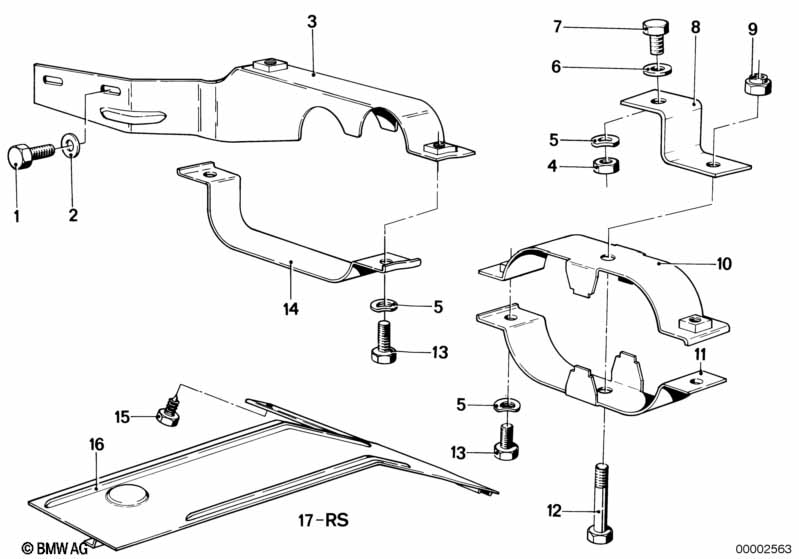

This 排氣系統 technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware.
| 號碼. | 敘述 | 補充 | 數量 | 從 | 最高至 | 零件料號 | 價錢 | 備註 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 04 | 六角螺母 | M8-8-ZNNIV SI | 1 | 09/1979 | 07119905515 | $0.16 | Shop at ECS Tuning | |||
| 05 | 彈簧墊片 | 8,4X15-ZNS3 | 3 | 09/1979 | 07119904115 | $0.09 | Shop at ECS Tuning | |||
| 06 | 平墊圈 | 8,4X16X1,6-ZNNV | 2 | 09/1979 | 07119907030 | Shop at ECS Tuning | ||||
| 07 | 六角螺栓 | M8X30-ZN | 1 | 09/1979 | 07119913662 | $0.22 | Shop at ECS Tuning | |||
| 07 | 六角螺栓 | M8X30 | 1 | 09/1979 | 07119913664 | $0.47 | Shop at ECS Tuning | |||
| 08 | 角度 | 1 | 09/1979 | 18211245931 | $3.11 | Shop at ECS Tuning | ||||
| 09 | 六角螺母及平墊圈 | M8 | 1 | 09/1979 | 51117070183 | $0.77 | Shop at ECS Tuning | |||
| 10 | 夾圈 | 1 | 09/1979 | 18211245632 | $0.51 | 已不供應 | Shop at ECS Tuning | |||
| 11 | 夾圈 | 1 | 09/1979 | 18211245633 | $0.84 | 已不供應 | Shop at ECS Tuning | |||
| 12 | 六角螺栓 | M8X80 | 1 | 09/1979 | 07119912558 | $2.89 | Shop at ECS Tuning | |||
| 13 | 六角螺栓 | M8X25-8.8-ZNNIV | 2 | 09/1979 | 07119906181 | $0.55 | Shop at ECS Tuning | |||
| 13 | 六角螺栓 | M8X25 | 2 | 09/1979 | 07119913653 | $0.47 | Shop at ECS Tuning | |||
| 15 | 六角鋼板螺栓 | ST6,3X16-R-U2-Z | 2 | 09/1979 | 07119905017 | $0.38 | Shop at ECS Tuning | |||
| 16 | 隔熱板 | 1 | 09/1979 | 31111126464 | $9.57 | 已不供應 | Shop at ECS Tuning | |||
| 17 | 排氣裝置懸掛件修理套件 | 1 | 09/1979 | 18211245916 | 已不供應 | Shop at ECS Tuning |
備註
- 已不供應 = 此零件已停產
