變速箱懸掛裝置/手動變速箱 for BMW 3 Series E46 M3

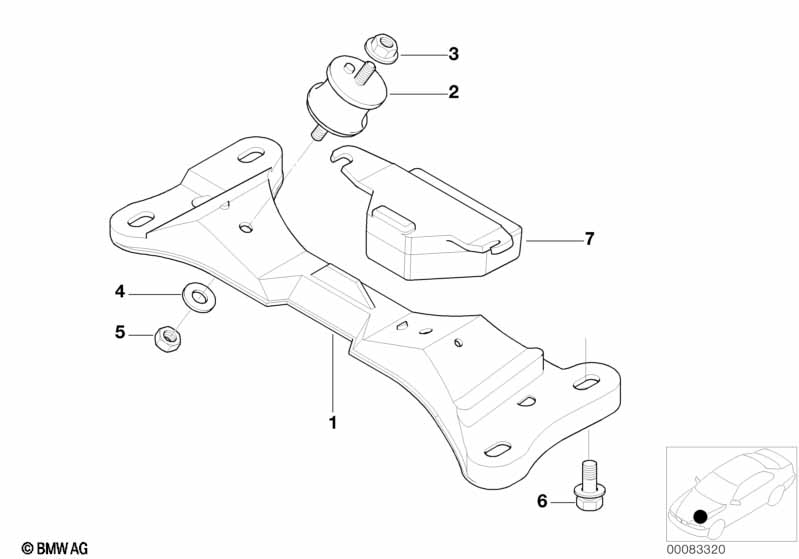

This 變速箱懸掛裝置/手動變速箱 technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 M3. It includes part names, part numbers and all associated mounting hardware.
| 號碼. | 敘述 | 補充 | 數量 | 從 | 最高至 | 零件料號 | 價錢 | 備註 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 變速箱支架 | 1 | 22312229198 | $37.21 | Shop at ECS Tuning | |||||
| 02 | 變速箱支座 | 2 | 22322282340 | $17.27 | Shop at ECS Tuning | |||||
| 03 | 六角螺母及平墊圈 | M8 | 2 | 22316760944 | $0.38 | Shop at ECS Tuning | ||||
| 04 | 平墊圈 | 8,4X16X1,6-ZNNV | 2 | 01/2004 | 07119907030 | Shop at ECS Tuning | ||||
| 05 | 六角螺母 | M8-8-ZNNIV SI | 2 | 01/2004 | 07119905515 | $0.16 | Shop at ECS Tuning | |||
| 05 | 六角螺母及平墊圈 | M8-ZNS3 | 2 | 01/2004 | 07129904862 | $1.12 | Shop at ECS Tuning | |||
| 06 | 六角螺栓及平墊圈 | M8X22-8.8-ZNS3 | 4 | 22326760945 | $1.08 | Shop at ECS Tuning | ||||
| 07 | 缓冲减震块 | 1 | 23002282310 | $232.71 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 M3 變速箱懸掛裝置/手動變速箱?
- This technical diagram illustrates the 變速箱懸掛裝置/手動變速箱 within the 引擎和變速箱懸掛裝置 group for the 3 Series E46 M3. It provides a detailed exploded view of the components, identifying key parts such as the 變速箱支架 (Part #22312229198).
- Which models use the hardware listed in this 變速箱懸掛裝置/手動變速箱?
- The hardware and components featured in the 變速箱懸掛裝置/手動變速箱 are specific to the 3 Series E46 M3. These technical specifications ensure that parts like the 變速箱支架 (22312229198) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the 變速箱懸掛裝置/手動變速箱 assembly?
- Each item in the 變速箱懸掛裝置/手動變速箱 corresponds to the numbered list below the illustration. For the 3 Series E46 M3, you can identify the 變速箱支架 by locating its position on the schematic, which then links to the official BMW part number 22312229198 for the 引擎和變速箱懸掛裝置 section.
