Getrag 235 變速箱蓋罩 + 安裝件 for BMW 5 Series E12 520

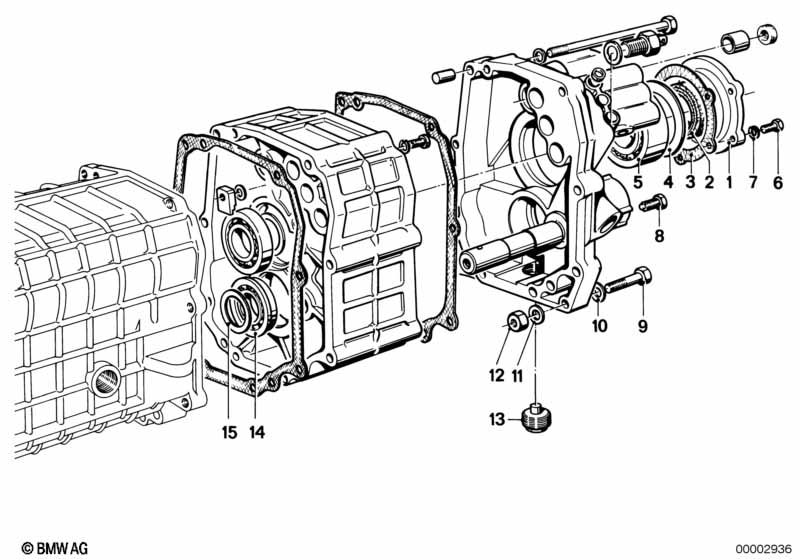

This Getrag 235 變速箱蓋罩 + 安裝件 technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 520. It includes part names, part numbers and all associated mounting hardware.
| 號碼. | 敘述 | 補充 | 數量 | 從 | 最高至 | 零件料號 | 價錢 | 備註 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 防爆胎輔圈 | 1 | 06/1975 | 23111203721 | $60.61 | 已不供應 | Shop at ECS Tuning | |||
| 02 | 軸密封環 | 38X55X10 | 1 | 06/1975 | 23121204210 | Shop at ECS Tuning | ||||
| 03 | 密封件 不含石棉 | 1 | 06/1975 | 23121222355 | $4.27 | Shop at ECS Tuning | ||||
| 04 | 間隔墊圈 | 56X72X0,3 | X | 06/1975 | 23121200438 | $2.82 | Shop at ECS Tuning | |||
| 05 | 球軸承 | 72X30X19 | 1 | 06/1975 | 23129981441 | Shop at ECS Tuning | ||||
| 06 | 六角螺栓 | M6X18 | 5 | 06/1975 | 23317545769 | $0.67 | Shop at ECS Tuning | |||
| 07 | 彈簧圈 | B6 | 7 | 06/1975 | 07119933082 | $0.09 | Shop at ECS Tuning | |||
| 08 | 緊固螺栓 | M6X15 | 1 | 06/1975 | 07119911218 | $0.38 | 已不供應 | Shop at ECS Tuning | ||
| 09 | 六角螺栓 | M8X40-ZNNIV SI | 1 | 06/1975 | 07119905549 | $1.05 | Shop at ECS Tuning | |||
| 10 | 平墊圈 | 8,4X16X1,6-ZNNV | 2 | 06/1975 | 07119907030 | Shop at ECS Tuning | ||||
| 11 | 彈簧墊片 | 8,4X15-ZNS3 | 1 | 06/1975 | 07119904115 | $0.09 | Shop at ECS Tuning | |||
| 12 | 六角螺母 | M8-8-ZNNIV SI | 3 | 06/1975 | 07119905515 | $0.16 | Shop at ECS Tuning | |||
| 13 | 螺釘 | 1 | 06/1975 | 23111490182 | $7.70 | 已不供應 | Shop at ECS Tuning | |||
| 14 | 滾柱軸承 | 52X25X15 | 1 | 06/1975 | 23121200731 | $54.41 | Shop at ECS Tuning | |||
| 15 | 間隔墊圈 | 20X28X0,3 | X | 06/1975 | 23121606151 | $0.42 | Shop at ECS Tuning |
備註
- 已不供應 = 此零件已停產
