傳動軸萬嚮節盤 / 中間軸承 for BMW 6 Series E24 633CSi

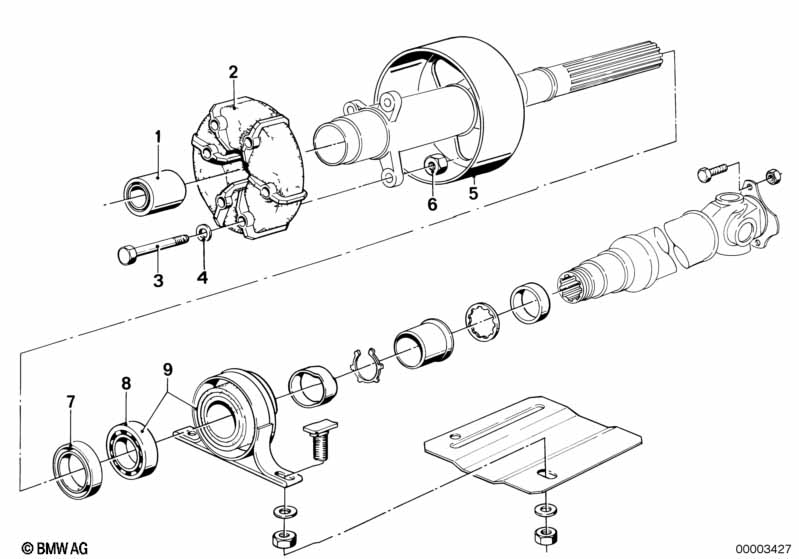

This 傳動軸萬嚮節盤 / 中間軸承 technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware.
| 號碼. | 敘述 | 補充 | 數量 | 從 | 最高至 | 零件料號 | 價錢 | 備註 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 對中套筒 | 1 | 26117526611 | $11.32 | Shop at ECS Tuning | |||||
| 02 | 萬嚮節盤 | D=96MM/12 | 1 | 09/1980 | 26111107832 | $107.93 | Shop at ECS Tuning | |||
| 02 | 萬嚮節盤 | LK=96MM/D=146MM | 1 | 09/1980 | 26111209168 | $105.21 | 已不供應 | Shop at ECS Tuning | ||
| 02 | 萬嚮節盤 | LK=96MM/D=146MM | 1 | 09/1980 | 26111209168 | $105.21 | 已不供應 | Shop at ECS Tuning | ||
| 03 | 六角螺栓 | M12X70 | 6 | 09/1980 | 26111107834 | $2.11 | Shop at ECS Tuning | |||
| 03 | 六角螺栓 | M12X1,5X56 | 6 | 09/1980 | 27101220647 | $2.16 | Shop at ECS Tuning | |||
| 03 | 六角螺栓 | M12X1,5X56 | 6 | 09/1980 | 27101220647 | $2.16 | Shop at ECS Tuning | |||
| 04 | 彈簧墊片 | B12-ZN | 6 | 07119932132 | $0.25 | 已不供應 | Shop at ECS Tuning | |||
| 05 | 隔熱板 | 2 | 09/1979 | 26111207798 | $9.92 | 已不供應 | Shop at ECS Tuning | |||
| 05 | 隔熱板 | 2 | 09/1979 | 26111207798 | $9.92 | 已不供應 | Shop at ECS Tuning | |||
| 06 | 六角螺母 自鎖式 | M12X1,5-10-PHR | 6 | 07129900047 | $0.62 | Shop at ECS Tuning | ||||
| 07 | 防塵 | 1 | 26113748138 | $1.59 | Shop at ECS Tuning | |||||
| 08 | 嚮心球軸承 | D=55/D=30 | 1 | 26121225071 | $26.16 | Shop at ECS Tuning | ||||
| 09 | 中間軸承 | 1 | 26111206502 | $125.71 | Shop at ECS Tuning |
備註
- 已不供應 = 此零件已停產
