傳動軸安裝件 中間軸承 for BMW 6 Series E24 633CSi

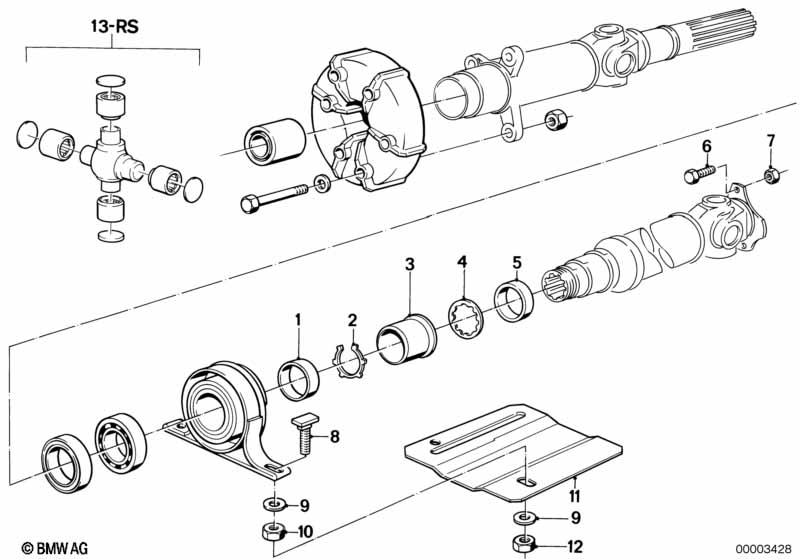

This 傳動軸安裝件 中間軸承 technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware.
| 號碼. | 敘述 | 補充 | 數量 | 從 | 最高至 | 零件料號 | 價錢 | 備註 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 防塵 | 1 | 26121100992 | $2.48 | Shop at ECS Tuning | |||||
| 02 | 防松環 | 1 | 26123648156 | $0.98 | Shop at ECS Tuning | |||||
| 03 | 帶夾圈的螺紋環 | 1 | 26117514037 | $12.52 | Shop at ECS Tuning | |||||
| 04 | 鎖緊墊圈 | 1 | 09/1981 | 26111100692 | $0.55 | Shop at ECS Tuning | ||||
| 04 | 鎖緊墊圈 | 1 | 09/1981 | 26111209285 | $2.73 | Shop at ECS Tuning | ||||
| 04 | 鎖緊墊圈 | 1 | 09/1981 | 26111209285 | $2.73 | Shop at ECS Tuning | ||||
| 05 | 夾圈 | 1 | 09/1981 | 26111207480 | $5.27 | 已不供應 | Shop at ECS Tuning | |||
| 05 | 帶夾圈的螺紋環 | 1 | 09/1981 | 26117514037 | $12.52 | Shop at ECS Tuning | ||||
| 05 | 帶夾圈的螺紋環 | 1 | 09/1981 | 26117514037 | $12.52 | Shop at ECS Tuning | ||||
| 06 | 圓頭螺釘 | M10X25 | 4 | 09/1982 | 26111101015 | $0.91 | Shop at ECS Tuning | |||
| 07 | 六角螺母 自鎖式 | M10 | 4 | 07129964672 | $0.36 | Shop at ECS Tuning | ||||
| 08 | 四角螺釘 | M8X21 | 2 | 09/1979 | 26111205004 | $1.54 | Shop at ECS Tuning | |||
| 08 | 四角螺釘 | M8X21 | 2 | 09/1979 | 23711175689 | $0.91 | Shop at ECS Tuning | |||
| 08 | 四角螺釘 | M8X21 | 2 | 09/1979 | 23711175689 | $0.91 | Shop at ECS Tuning | |||
| 09 | 平墊圈 | 8,4X16X1,6-ZNNV | 2 | 07119907030 | Shop at ECS Tuning | |||||
| 10 | 六角螺母 | M8-8-ZNNIV SI | 2 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 11 | 防護板 | 1 | 26111205001 | 已不供應 | Shop at ECS Tuning | |||||
| 12 | 六角螺母 | M8-05-ZNNIV SI | 2 | 07119904948 | $1.00 | Shop at ECS Tuning |
備註
- 已不供應 = 此零件已停產
