機油箱 / 零件 / 主動轉向控制 for BMW 5 Series E60 530i (2007)

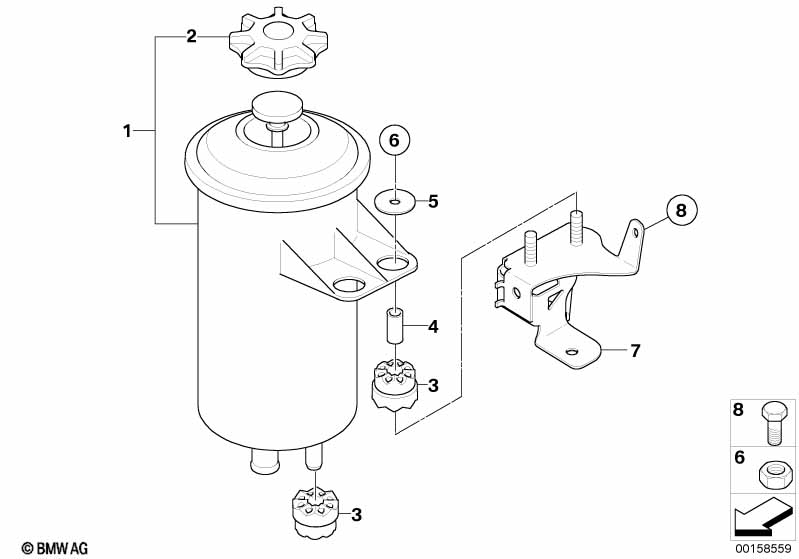

This 機油箱 / 零件 / 主動轉向控制 technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| 號碼. | 敘述 | 補充 | 數量 | 從 | 最高至 | 零件料號 | 價錢 | 備註 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 用於車輛及 D Steering 和 動態行駛穩定裝置 |
S217A=岆 S229A=瘁 |
|||||||||
| 01 | 機油箱 | 1 | 32416782538 | $74.98 | Shop at ECS Tuning | |||||
| 02 | 蓋罩 | 1 | 32411092649 | $16.03 | Shop at ECS Tuning | |||||
| 03 | 橡膠支座 | 3 | 02/2006 | 32416772178 | $2.93 | Shop at ECS Tuning | ||||
| 04 | 隔套 | ZNS3 | 2 | 07146977328 | $1.21 | Shop at ECS Tuning | ||||
| 用於車輛及 D Steering 和 動態行駛穩定裝置 取消 |
S217A=岆 S229A=瘁 |
|||||||||
| 05 | 平墊圈 | 6,4X25X1,5 | 2 | 04/2008 | 07146977329 | $0.64 | Shop at ECS Tuning | |||
| 用於車輛及 D Steering 和 動態行駛穩定裝置 |
S217A=岆 S229A=瘁 |
|||||||||
| 06 | 六角螺母 | M6-8-ZNS3 | 2 | 07119905128 | $0.44 | Shop at ECS Tuning | ||||
| 07 | 支架 機油箱 | 1 | 32416760249 | $19.76 | Shop at ECS Tuning | |||||
| 08 | 六角螺栓 | M5X14 | 2 | 07119904337 | $0.38 | Shop at ECS Tuning | ||||
