液壓助力轉嚮機構油管 for BMW 1 Series E87 118d

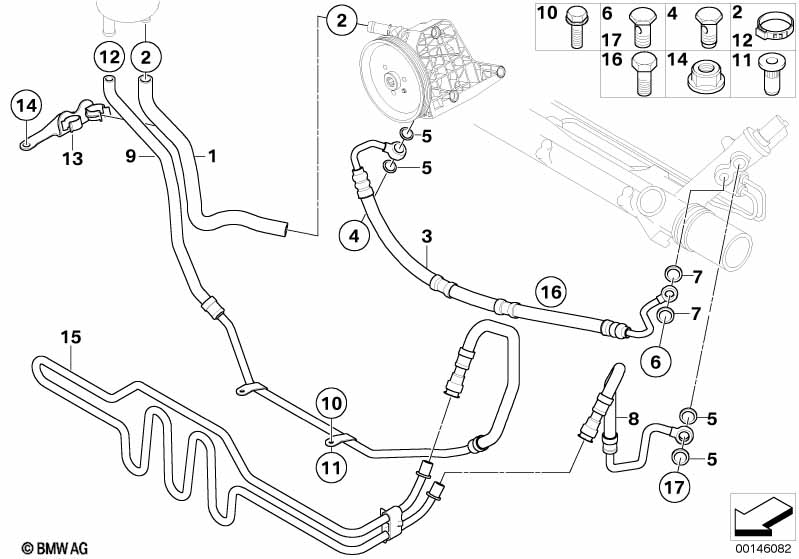

This 液壓助力轉嚮機構油管 technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 118d. It includes part names, part numbers and all associated mounting hardware.
| 號碼. | 敘述 | 補充 | 數量 | 從 | 最高至 | 零件料號 | 價錢 | 備註 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 吸管 | 1 | 05/2011 | 32416764738 | 已不供應 | Shop at ECS Tuning | ||||
| 01 | 吸管 | 1 | 32416850284 | 已不供應 | Shop at ECS Tuning | |||||
| 02 | 軟管夾頭 | 2 | 32416751127 | $1.12 | Shop at ECS Tuning | |||||
| 03 | Aw 伸展軟管 | 1 | 05/2006 | 32416779316 | Shop at ECS Tuning | |||||
| 03 | Aw 伸展軟管 | 1 | 05/2006 | 32416779316 | Shop at ECS Tuning | |||||
| 僅連接 | ||||||||||
| -- | 導線架 | D=17/D=19 | 1 | 05/2006 | 13537792950 | $1.08 | Shop at ECS Tuning | |||
| 僅適用於 | ||||||||||
| -- | 回流管路 | X | 05/2006 | 32416764741 | 已不供應 | Shop at ECS Tuning | ||||
| -- | 回流管路 | X | 05/2006 | 32416771104 | 已不供應 | Shop at ECS Tuning | ||||
| 03 | Aw 伸展軟管 | 1 | 05/2006 | 32416779316 | Shop at ECS Tuning | |||||
| 僅適用於 | ||||||||||
| -- | 回流管路 | X | 05/2006 | 32416775524 | 已不供應 | Shop at ECS Tuning | ||||
| 04 | 空心螺釘 | M16X28 | 1 | 10/2005 | 32416852470 | Shop at ECS Tuning | ||||
| 04 | 帶肩空心螺釘 | M16X28 | 1 | 32416781666 | $2.47 | Shop at ECS Tuning | ||||
| 05 | 密封環 | A16X22-CUSN | 4 | 10/2005 | 32411093597 | $0.27 | Shop at ECS Tuning | |||
| 05 | 密封環 | A16X22 SFCU F22 | 4 | 32416773722 | $0.65 | Shop at ECS Tuning | ||||
| 05 | 密封環 | A16X20-CUSN | 4 | 07119906463 | $0.33 | Shop at ECS Tuning | ||||
| 06 | 帶孔螺栓 帶單向閥 | M14X1,5X27,4 | 1 | 32416781261 | $10.02 | Shop at ECS Tuning | ||||
| 07 | 密封環 | A14X20-CUSN | 2 | 32411093596 | $0.31 | Shop at ECS Tuning | ||||
| 08 | 回流管路 | 1 | 05/2006 | 32416796349 | Shop at ECS Tuning | |||||
| 08 | 回流管路 | 1 | 05/2006 | 32416796349 | Shop at ECS Tuning | |||||
| 僅連接 | ||||||||||
| -- | 導線架 | D=17/D=19 | 1 | 05/2006 | 13537792950 | $1.08 | Shop at ECS Tuning | |||
| 僅適用於 | ||||||||||
| -- | Aw 伸展軟管 | X | 05/2006 | 32416774316 | 已不供應 | Shop at ECS Tuning | ||||
| 09 | 冷卻器回流管路 | 1 | 32416796348 | 已不供應 | Shop at ECS Tuning | |||||
| 10 | 六角螺栓及平墊圈 | M6X18-U1 | 2 | 07119905399 | $0.36 | Shop at ECS Tuning | ||||
| 11 | 盲鉚釘螺母 平頭 | M6 | 2 | 07146989330 | $1.25 | Shop at ECS Tuning | ||||
| 12 | 軟管夾頭 | 1 | 32416751128 | $0.98 | Shop at ECS Tuning | |||||
| 13 | 支架 轉向系統導線 | 1 | 32416770473 | Shop at ECS Tuning | ||||||
| 14 | 六角螺母 | M6-8-ZNS3 | 2 | 07119905128 | $0.44 | Shop at ECS Tuning | ||||
| 15 | 轉向輔助裝置環路 | 1 | 17117522050 | Shop at ECS Tuning | ||||||
| 16 | 六角螺栓 | M6X12-8.8-ZNNIV | 2 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 17 | 空心螺釘 | M16X28 | 1 | 32416852470 | Shop at ECS Tuning | |||||
備註
- 已不供應 = 此零件已停產
