後橋半軸 / 車輪軸承 for BMW 3 Series E36 320i (1992)

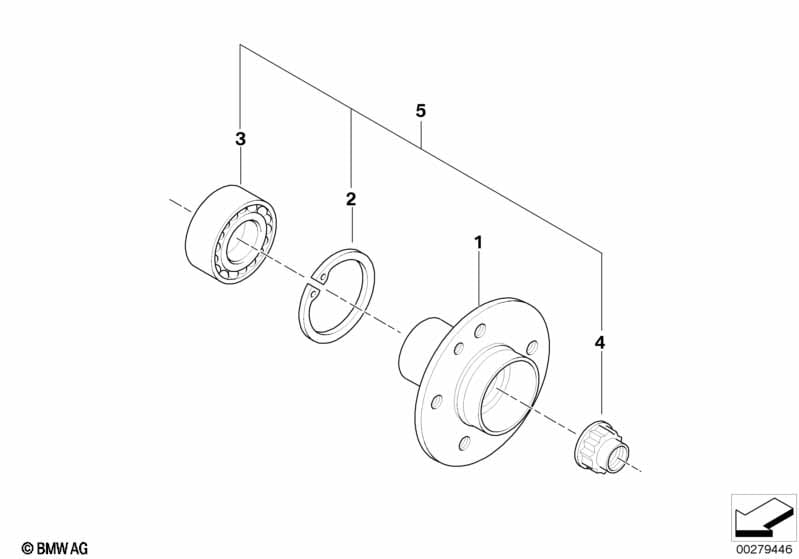

This 後橋半軸 / 車輪軸承 technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| 號碼. | 敘述 | 補充 | 數量 | 從 | 最高至 | 零件料號 | 價錢 | 備註 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 僅適用於鼓式制動器 | ||||||||||
| 01 | 從動法蘭輪轂 | 2 | 33411093693 | $104.60 | Shop at ECS Tuning | |||||
| 僅適用於盤式制動器 | ||||||||||
| 01 | 從動法蘭輪轂 | 2 | 33411093567 | $110.11 | Shop at ECS Tuning | |||||
| 僅適用於鼓式制動器 | ||||||||||
| 02 | 防松環 | 72X2,5 | 2 | 33411128346 | $1.27 | Shop at ECS Tuning | ||||
| 僅適用於盤式制動器 | ||||||||||
| 02 | 防松環 | 79X2,5 | 2 | 33411138648 | $1.32 | Shop at ECS Tuning | ||||
| 僅適用於鼓式制動器 | ||||||||||
| 03 | 角接觸球軸承 | 39X72X37 | 2 | 33411124358 | $73.23 | Shop at ECS Tuning | ||||
| 僅適用於盤式制動器 | ||||||||||
| 03 | 保養套件 車輪軸承 後部 | VALUE PARTS | 2 | 33412220987 | Shop at ECS Tuning | |||||
| 04 | 帶肩螺母 | M24X1,5 | 2 | 33411132565 | $7.28 | Shop at ECS Tuning | ||||
| 僅適用於盤式制動器 | ||||||||||
| 05 | 保養套件 車輪軸承 後部 | VALUE PARTS | 2 | 33412220987 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 320i 後橋半軸 / 車輪軸承?
- This technical diagram illustrates the 後橋半軸 / 車輪軸承 within the 後橋 group for the 3 Series E36 320i produced during 1992. It provides a detailed exploded view of the components, identifying key parts such as the 從動法蘭輪轂 (Part #33411093693).
- Which models use the hardware listed in this 後橋半軸 / 車輪軸承?
- The hardware and components featured in the 後橋半軸 / 車輪軸承 are specific to the 3 Series E36 320i produced during 1992. These technical specifications ensure that parts like the 從動法蘭輪轂 (33411093693) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the 後橋半軸 / 車輪軸承 assembly?
- Each item in the 後橋半軸 / 車輪軸承 corresponds to the numbered list below the illustration. For the 3 Series E36 320i, you can identify the 從動法蘭輪轂 by locating its position on the schematic, which then links to the official BMW part number 33411093693 for the 後橋 section.
