踏板軸承座/離合器踏板 for BMW 3 Series E36 323i (1996)

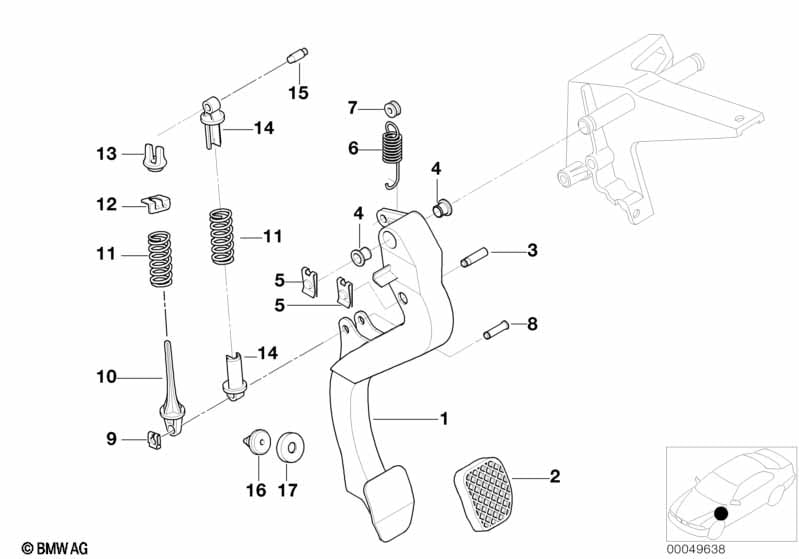

This 踏板軸承座/離合器踏板 technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| 號碼. | 敘述 | 補充 | 數量 | 從 | 最高至 | 零件料號 | 價錢 | 備註 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | 僅適用於手動變速箱 | |||||||||
| 01 | 離合器踏板 | 1 | 35311160630 | $34.60 | Shop at ECS Tuning | |||||
| 02 | 踏板鍍層 | 1 | 35311160659 | $4.47 | Shop at ECS Tuning | |||||
| 03 | 保險螺栓 | D=12MM | 1 | 21521159047 | $1.02 | Shop at ECS Tuning | ||||
| 主動缸 離合器 | ||||||||||
| 04 | 軸承襯套 | 2 | 35211158290 | $1.52 | Shop at ECS Tuning | |||||
| 05 | 保險絲 | B10-ZNS3 | 2 | 07129904567 | $0.40 | Shop at ECS Tuning | ||||
| 06 | 回位彈簧 | 1 | 35211158489 | $1.52 | 已不供應 | Shop at ECS Tuning | ||||
| 07 | 密封蓋 | D=7,5MM | 1 | 35411113728 | $0.57 | Shop at ECS Tuning | ||||
| 08 | 回位彈簧銷 | D=8MM/L=28MM | 1 | 35311159046 | $1.40 | Shop at ECS Tuning | ||||
| 09 | 防鬆墊片 | B8 | 1 | 09/1999 | 07129934916 | $0.38 | 已不供應 | Shop at ECS Tuning | ||
| 10 | 鎖止銷 | 1 | 03/1997 | 35311158661 | $2.85 | Shop at ECS Tuning | ||||
| 11 | 壓力彈簧 | L=64MM | 1 | 35311162505 | $1.50 | Shop at ECS Tuning | ||||
| 12 | 定位板 | 1 | 03/1997 | 35311162363 | $0.78 | Shop at ECS Tuning | ||||
| 13 | 支架 壓力彈簧 | 1 | 03/1997 | 35311157478 | $1.53 | Shop at ECS Tuning | ||||
| 16 | 緩沖擋塊 離合器踏板 | 1 | 35311152237 | $0.70 | Shop at ECS Tuning | |||||
| 17 | 蓋罩 | 1 | 35311153896 | $0.70 | Shop at ECS Tuning | |||||
備註
- 已不供應 = 此零件已停產
