BMW 輕質合金輪輞 星形輪幅 136 for BMW 3 Series E46 325i (2000)

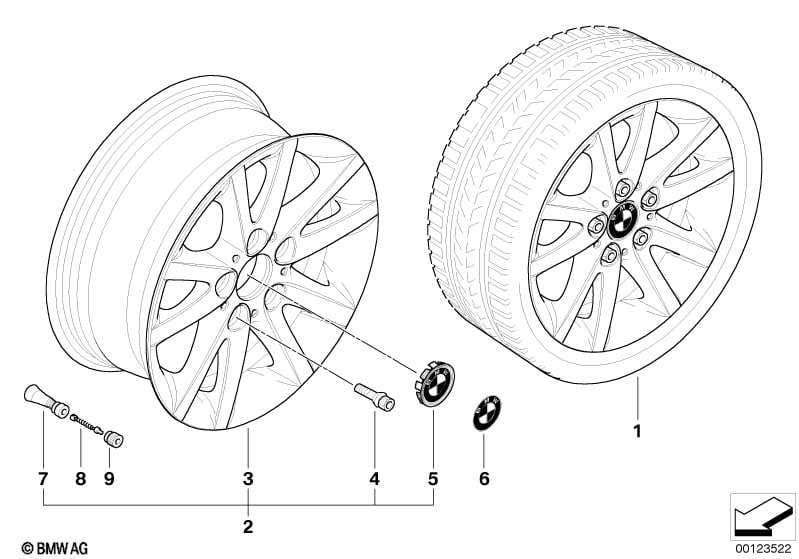

This BMW 輕質合金輪輞 星形輪幅 136 technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| 號碼. | 敘述 | 補充 | 數量 | 從 | 最高至 | 零件料號 | 價錢 | 備註 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | 輕合金盤式輪輞 | 7JX16 ET:47 | 4 | 36116762299 | $279.95 | 已不供應 | Shop at ECS Tuning | |||
| 04 | 車輪螺栓 Schwarz | M12X1,5 | 20 | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 05 | 帶鉻邊緣的輪轂蓋板 | BMW | 4 | 36136783536 | $9.95 | Shop at ECS Tuning | ||||
| 06 | BMW 品牌標識 衝壓 / 噴漆 | 4 | 36136767547 | $5.02 | 已不供應 | Shop at ECS Tuning | ||||
| 07 | 橡膠閥 | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 用於車輛及 輪胎壓力監控 (RDC) |
S265A=岆 |
|||||||||
| 07 | 螺紋閥門 輪胎壓力監控 | 4 | 36146792829 | $13.90 | Shop at ECS Tuning | |||||
| 08 | 閥芯 | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 09 | 閥蓋罩 | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| 僅適用於 螺紋閥門 RDC |
||||||||||
| 09 | 閥門蓋 RDC | 4 | 36111095436 | $0.35 | Shop at ECS Tuning | |||||
備註
- 已不供應 = 此零件已停產
