BMW 輕質合金輪輞 星形輪幅 169 for BMW 3 Series E46 325i (2000)

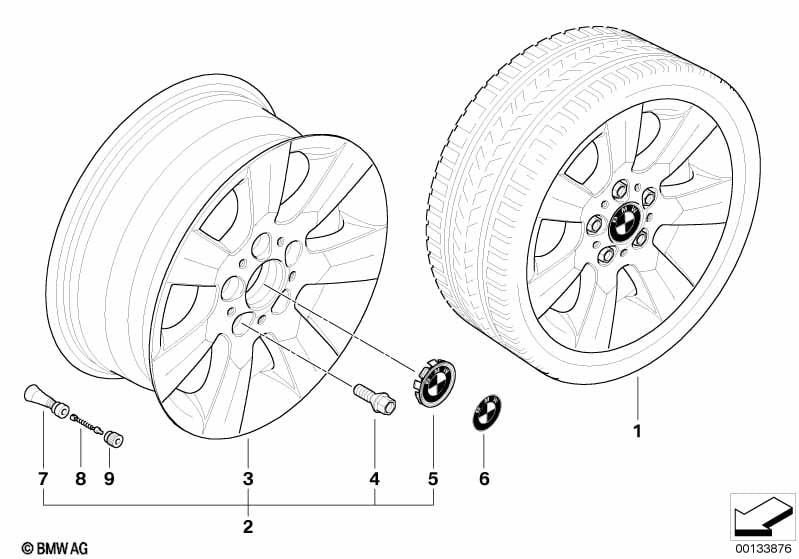

This BMW 輕質合金輪輞 星形輪幅 169 technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| 號碼. | 敘述 | 補充 | 數量 | 從 | 最高至 | 零件料號 | 價錢 | 備註 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | 輕合金盤式輪輞 | 7JX16 ET:47 | 4 | 36116766734 | $279.95 | Shop at ECS Tuning | ||||
| 04 | 車輪螺栓 Schwarz | M12X1,5 | 20 | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 05 | 帶鉻邊緣的輪轂蓋板 | BMW | 4 | 36136783536 | $9.95 | Shop at ECS Tuning | ||||
| 06 | BMW 品牌標識 衝壓 / 噴漆 | 4 | 36136767547 | $5.02 | 已不供應 | Shop at ECS Tuning | ||||
| 07 | 橡膠閥 | L=48,5MM | 4 | 36121178869 | $3.30 | Shop at ECS Tuning | ||||
| 08 | 閥芯 | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 09 | 閥蓋罩 | 4 | 36121120779 | $0.60 | Shop at ECS Tuning |
備註
- 已不供應 = 此零件已停產
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 325i BMW 輕質合金輪輞 星形輪幅 169?
- This technical diagram illustrates the BMW 輕質合金輪輞 星形輪幅 169 within the 車輪及輪胎 group for the 3 Series E46 325i produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the 輕合金盤式輪輞 (Part #36116766734).
- Which models use the hardware listed in this BMW 輕質合金輪輞 星形輪幅 169?
- The hardware and components featured in the BMW 輕質合金輪輞 星形輪幅 169 are specific to the 3 Series E46 325i produced during 2000. These technical specifications ensure that parts like the 輕合金盤式輪輞 (36116766734) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the BMW 輕質合金輪輞 星形輪幅 169 assembly?
- Each item in the BMW 輕質合金輪輞 星形輪幅 169 corresponds to the numbered list below the illustration. For the 3 Series E46 325i, you can identify the 輕合金盤式輪輞 by locating its position on the schematic, which then links to the official BMW part number 36116766734 for the 車輪及輪胎 section.
