側車架 for BMW 6 Series E24 633CSi

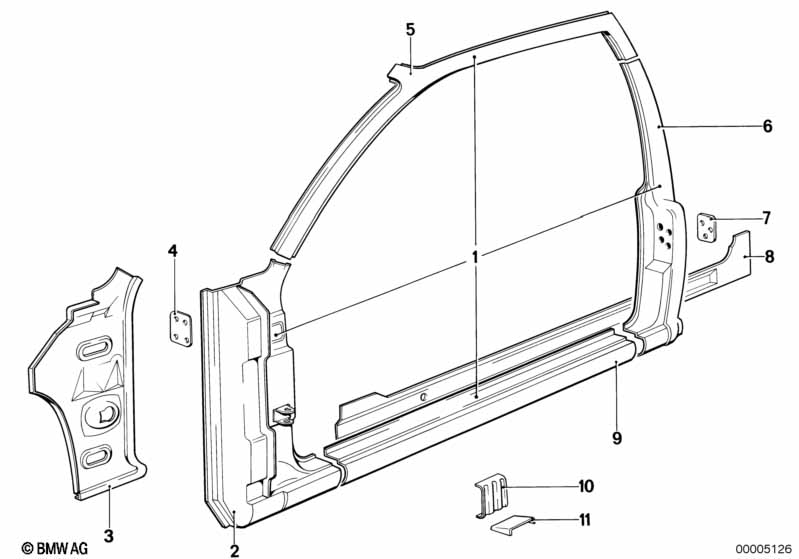

This 側車架 technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware.
| 號碼. | 敘述 | 補充 | 數量 | 從 | 最高至 | 零件料號 | 價錢 | 備註 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 左側車架 | 1 | 41211859439 | $1333.62 | 已不供應 | Shop at ECS Tuning | ||||
| 01 | 右側車架 | 1 | 41211859440 | $1333.62 | 已不供應 | Shop at ECS Tuning | ||||
| 02 | 柱 左前 | 1 | 41211839217 | $182.88 | 已不供應 | Shop at ECS Tuning | ||||
| 02 | 柱 右前 | 1 | 41211839218 | $182.88 | 已不供應 | Shop at ECS Tuning | ||||
| 03 | 封閉飾板 柱 前部 右 | 1 | 41211843968 | $175.21 | 已不供應 | Shop at ECS Tuning | ||||
| 03 | 封閉飾板 柱 前部 左 | 1 | 41211843969 | $175.21 | 已不供應 | Shop at ECS Tuning | ||||
| 04 | 螺紋盤 | 4 | 41211843553 | $16.41 | 已不供應 | Shop at ECS Tuning | ||||
| 05 | 框架 上部分 左 | 1 | 41211839223 | $347.08 | 已不供應 | Shop at ECS Tuning | ||||
| 05 | 框架 上部分 右 | 1 | 41211839224 | $347.08 | 已不供應 | Shop at ECS Tuning | ||||
| 06 | 柱 中部 左 | 1 | 41211839221 | $415.15 | Shop at ECS Tuning | |||||
| 06 | 柱 中部 右 | 1 | 41211839222 | $415.15 | Shop at ECS Tuning | |||||
| 07 | 螺紋板 左 | 1 | 51211851493 | $4.06 | Shop at ECS Tuning | |||||
| 07 | 螺紋板 右 | 1 | 51211851494 | $4.06 | Shop at ECS Tuning | |||||
| 08 | 縱梁 左 | 1 | 41111919959 | $161.82 | 已不供應 | Shop at ECS Tuning | ||||
| 08 | 縱梁 右 | 1 | 41111919960 | $161.82 | 已不供應 | Shop at ECS Tuning | ||||
| 09 | 車門檻板 左側 | 1 | 41211839219 | $615.16 | 已不供應 | Shop at ECS Tuning | ||||
| 09 | 車門檻板 右側 | 1 | 41211839220 | $615.16 | 已不供應 | Shop at ECS Tuning | ||||
| 10 | 支承板 汽車舉升機的支承點 後部 | 1 | 41211843988 | $25.30 | 已不供應 | Shop at ECS Tuning | ||||
| 10 | 支承板 汽車舉升機的支承點 前部 | 1 | 41211945078 | $25.30 | 已不供應 | Shop at ECS Tuning | ||||
| 11 | 汽車舉升台支承點 | 1 | 41351846690 | $4.18 | 已不供應 | Shop at ECS Tuning | ||||
| 11 | 汽車舉升台支承點 | 2 | 41351945750 | $18.97 | 已不供應 | Shop at ECS Tuning |
備註
- 已不供應 = 此零件已停產
