車頂 for BMW 6 Series E24 633CSi

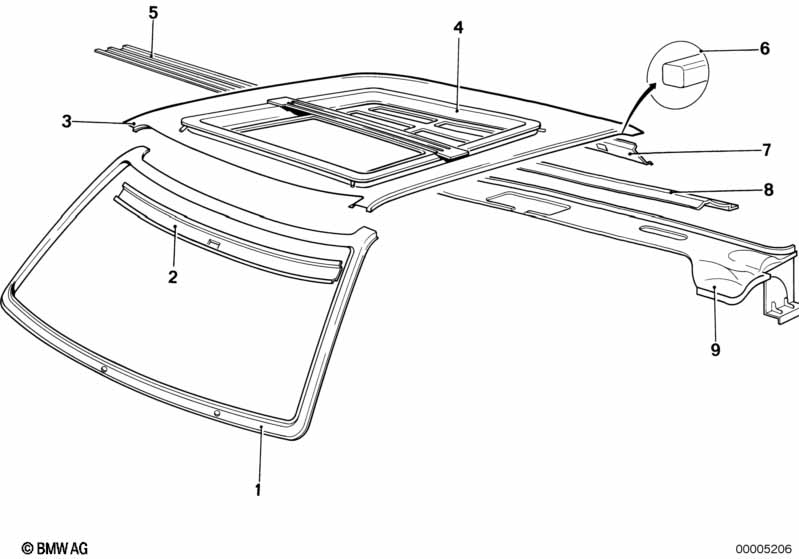

This 車頂 technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware.
| 號碼. | 敘述 | 補充 | 數量 | 從 | 最高至 | 零件料號 | 價錢 | 備註 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 風窗框板 | 1 | 41321843999 | $241.08 | 已不供應 | Shop at ECS Tuning | ||||
| 02 | 封閉飾板 | 1 | 41321961959 | $104.90 | 已不供應 | Shop at ECS Tuning | ||||
| 03 | 車頂面板 活動天窗 | 1 | 41311860949 | 已不供應 | Shop at ECS Tuning | |||||
| 04 | 框架 活動天窗 | 1 | 54121953935 | $268.96 | 已不供應, SI 510389992 | Shop at ECS Tuning | ||||
| 05 | 車頂弓形架 | 1 | 41231843952 | $99.05 | Shop at ECS Tuning | |||||
| 06 | 充填橡膠 | 5000MM | X | 41359058743 | $42.15 | 已不供應 | Shop at ECS Tuning | |||
| 07 | 後窗框 上部 | 1 | 41321843951 | $103.79 | 已不供應 | Shop at ECS Tuning | ||||
| 08 | 後窗框 下部 | 1 | 41321843949 | $64.84 | 已不供應 | Shop at ECS Tuning | ||||
| 09 | 封閉飾板 後窗框 | 1 | 41321942038 | $304.67 | 已不供應 | Shop at ECS Tuning |
備註
- 已不供應 = 此零件已停產
- SI = Service-Information (服務信息)
