後行李箱蓋 / 聯鎖系統 for BMW 3 Series E46 318d (2001)

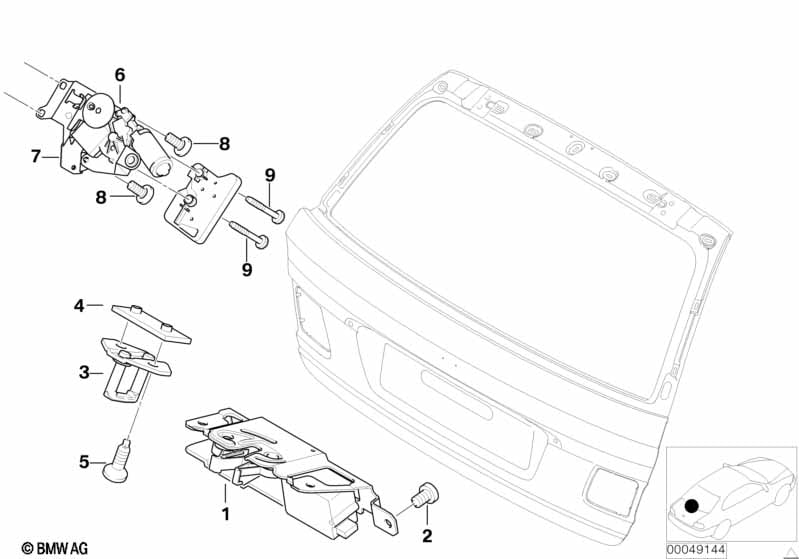

This 後行李箱蓋 / 聯鎖系統 technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| 號碼. | 敘述 | 補充 | 數量 | 從 | 最高至 | 零件料號 | 價錢 | 備註 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 車鎖 後行李箱蓋 | 1 | 51247201561 | $119.47 | +料件本體費. | Shop at ECS Tuning | ||||
| 02 | 星形螺栓 帶平墊圈 | ISA M6X16 | 4 | 07146959924 | $0.80 | Shop at ECS Tuning | ||||
| 03 | 鎖箍 後行李箱蓋 | 1 | 51247201562 | $14.72 | +料件本體費. | Shop at ECS Tuning | ||||
| 04 | 螺紋盤 | M8 | 1 | 51248254777 | $2.08 | Shop at ECS Tuning | ||||
| 05 | 圓頭螺釘 | M8 | 2 | 07147233975 | Shop at ECS Tuning | |||||
| 06 | 後窗鎖 | 1 | 51247840623 | $113.82 | Shop at ECS Tuning | |||||
| 07 | 刮水器馬達 後窗 | 1 | 61627010295 | $313.31 | Shop at ECS Tuning | |||||
| 09 | TORX-BOLT WITH WASHER | 3 | 07149141669 | Shop at ECS Tuning |
備註
- +core = 加上料件本體費費用 (舊零件有可能回收)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 318d 後行李箱蓋 / 聯鎖系統?
- This technical diagram illustrates the 後行李箱蓋 / 聯鎖系統 within the 毛坯車身 group for the 3 Series E46 318d produced during 2001. It provides a detailed exploded view of the components, identifying key parts such as the 車鎖 後行李箱蓋 (Part #51247201561).
- Which models use the hardware listed in this 後行李箱蓋 / 聯鎖系統?
- The hardware and components featured in the 後行李箱蓋 / 聯鎖系統 are specific to the 3 Series E46 318d produced during 2001. These technical specifications ensure that parts like the 車鎖 後行李箱蓋 (51247201561) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the 後行李箱蓋 / 聯鎖系統 assembly?
- Each item in the 後行李箱蓋 / 聯鎖系統 corresponds to the numbered list below the illustration. For the 3 Series E46 318d, you can identify the 車鎖 後行李箱蓋 by locating its position on the schematic, which then links to the official BMW part number 51247201561 for the 毛坯車身 section.
