後行李箱蓋 / 聯鎖系統 for BMW 5 Series G30 LCI 520dX (2022)

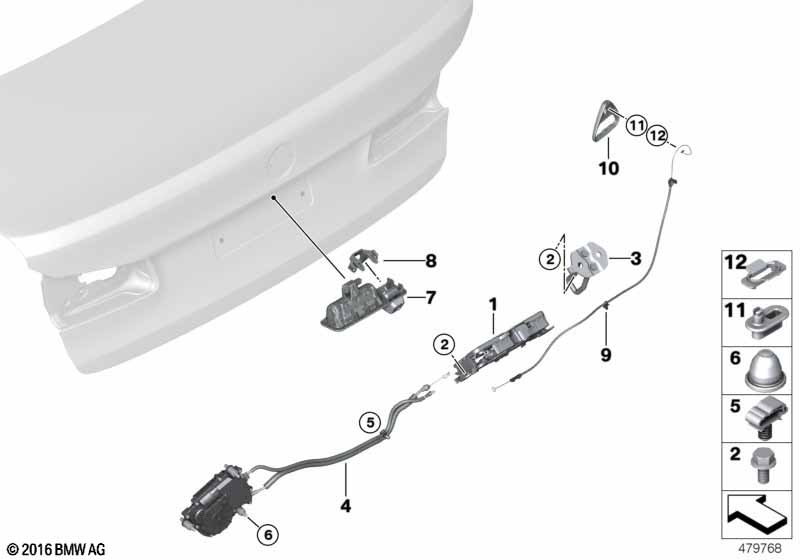

This 後行李箱蓋 / 聯鎖系統 technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 LCI 520dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| 號碼. | 敘述 | 補充 | 數量 | 從 | 最高至 | 零件料號 | 價錢 | 備註 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 用於車輛及 後行李箱蓋自動操作裝置 |
S316A=岆 |
|||||||||
| 01 | 車鎖 後行李箱蓋 | 1 | 51247441014 | Shop at ECS Tuning | ||||||
| 用於車輛及 後行李箱蓋自動操作裝置 |
S316A=瘁 |
|||||||||
| 01 | 車鎖 後行李箱蓋 | 1 | 51247383283 | Shop at ECS Tuning | ||||||
| 02 | 六角螺栓及平墊圈 | M8X20-U1-8.8 | 2 | 07119904992 | $0.55 | Shop at ECS Tuning | ||||
| 03 | 鎖箍 後行李箱蓋 | 1 | 51247357094 | Shop at ECS Tuning | ||||||
| 用於車輛及 後行李箱蓋自動操作裝置 |
S316A=岆 |
|||||||||
| 04 | 驅動裝置 伺服鎖 後行李箱蓋 | 1 | 51247383561 | Shop at ECS Tuning | ||||||
| 05 | 導線架 | 1 | 34521164653 | $0.23 | Shop at ECS Tuning | |||||
| 06 | 快裝連接器 | 3 | 63217216997 | $0.30 | Shop at ECS Tuning | |||||
| 用於車輛及 倒車攝像機 和 泊車輔助系統 和 增強版泊車輔助系統 |
S3AGA=瘁 S5DMA=瘁 S5DNA=瘁 |
|||||||||
| 07 | 按鈕 後行李箱蓋 | 1 | 51247381867 | Shop at ECS Tuning | ||||||
| 07 | 按鈕 後行李箱蓋 | RFK | 1 | 51247381868 | Shop at ECS Tuning | |||||
| 僅連接 | ||||||||||
| -- | 遮視板 攝影機系統 | SCHWARZ | 1 | 66535A50B79 | Shop at ECS Tuning | |||||
| -- | 支架 倒車攝影機 | 1 | 51247405635 | Shop at ECS Tuning | ||||||
| 用於車輛及 倒車攝像機 或者 泊車輔助系統 或者 增強版泊車輔助系統 |
S3AGA=岆 S5DMA=岆 S5DNA=岆 |
|||||||||
| 07 | 按鈕 後行李箱蓋 | RFK | 1 | 51247381868 | Shop at ECS Tuning | |||||
| 08 | 支架 倒車攝影機 | 1 | 51247405635 | Shop at ECS Tuning | ||||||
| 用於車輛及 行李箱緊急解除聯鎖裝置 |
S5DSA=岆 |
|||||||||
| 09 | 拉線 緊急解除聯鎖裝置 | 1 | 51247366400 | Shop at ECS Tuning | ||||||
| 10 | 握柄 緊急解除聯鎖裝置 | 1 | 51247056414 | $7.25 | Shop at ECS Tuning | |||||
| 11 | 夾子 | 1 | 51247056413 | $1.69 | Shop at ECS Tuning | |||||
| 12 | 墊圈 | 1 | 51247057739 | $1.26 | Shop at ECS Tuning | |||||
