邊緣保護條 / 擋板 門檻 for BMW 3 Series E36 323ti

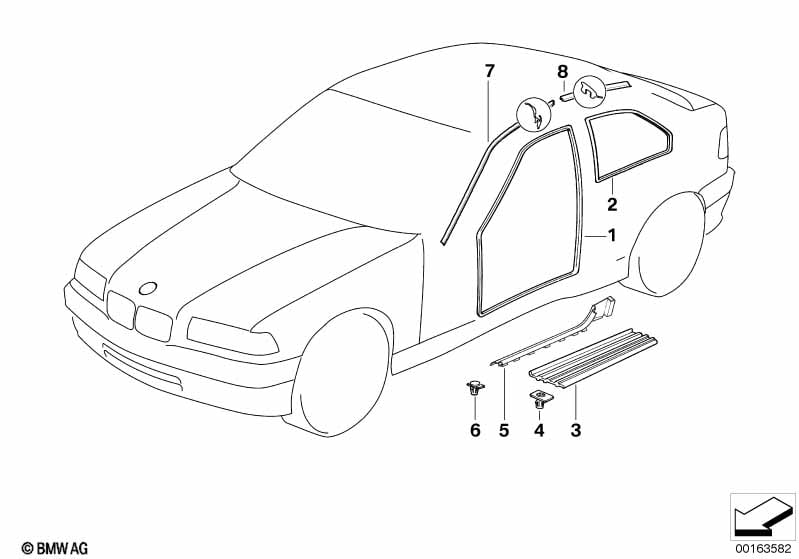

This 邊緣保護條 / 擋板 門檻 technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 323ti. It includes part names, part numbers and all associated mounting hardware.
| 號碼. | 敘述 | 補充 | 數量 | 從 | 最高至 | 零件料號 | 價錢 | 備註 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 密封件 前車門 | 2 | 51728196291 | $74.55 | Shop at ECS Tuning | |||||
| 02 | 邊緣保護條 左 | 1 | 51728146765 | $39.72 | Shop at ECS Tuning | |||||
| 02 | 邊緣保護條 右 | 1 | 51728146766 | $39.72 | Shop at ECS Tuning | |||||
| 03 | 飾板 門檻 前部 | -323TI- | 2 | 51477892207 | Shop at ECS Tuning | |||||
| 03 | 飾板 門檻 前部 | 2 | 51478146118 | $61.70 | Shop at ECS Tuning | |||||
| 03 | 飾板 門檻 前部 | CHROM | 2 | 09/1997 | 51478238206 | $61.70 | Shop at ECS Tuning | |||
| 用於車輛及 標記 BMW 個性化 |
S778A=岆 |
|||||||||
| 03 | 飾板 門檻 前部 | BMW INDIVIDUAL | 2 | 51477893368 | $91.14 | 已不供應 | Shop at ECS Tuning | |||
| 04 | 夾子﹐天然色 | L=13,2MM | X | 51471840960 | $0.24 | Shop at ECS Tuning | ||||
| 05 | 飾件 左 | SCHWARZ | 1 | 51478146953 | $13.00 | Shop at ECS Tuning | ||||
| 05 | 飾件 右 | SCHWARZ | 1 | 51478146954 | $13.00 | Shop at ECS Tuning | ||||
| 05 | 飾件 左 | SANDGRAU | 1 | 51478146955 | $13.00 | Shop at ECS Tuning | ||||
| 05 | 飾件 右 | SANDGRAU | 1 | 51478146956 | $13.00 | Shop at ECS Tuning | ||||
| 06 | 夾子 | X | 51471840961 | $0.42 | Shop at ECS Tuning | |||||
| 07 | 密封件 車頂縱梁 左 | 1 | 51718233801 | $44.73 | Shop at ECS Tuning | |||||
| 07 | 密封件 車頂縱梁 右 | 1 | 51718233802 | $44.73 | Shop at ECS Tuning | |||||
| 08 | 密封件 左後 | 1 | 51718202855 | $8.02 | Shop at ECS Tuning | |||||
| 08 | 密封件 右後 | 1 | 51718202856 | $8.02 | Shop at ECS Tuning | |||||
備註
- 已不供應 = 此零件已停產
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 323ti 邊緣保護條 / 擋板 門檻?
- This technical diagram illustrates the 邊緣保護條 / 擋板 門檻 within the 車身裝備 group for the 3 Series E36 323ti. It provides a detailed exploded view of the components, identifying key parts such as the 密封件 前車門 (Part #51728196291).
- Which models use the hardware listed in this 邊緣保護條 / 擋板 門檻?
- The hardware and components featured in the 邊緣保護條 / 擋板 門檻 are specific to the 3 Series E36 323ti. These technical specifications ensure that parts like the 密封件 前車門 (51728196291) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the 邊緣保護條 / 擋板 門檻 assembly?
- Each item in the 邊緣保護條 / 擋板 門檻 corresponds to the numbered list below the illustration. For the 3 Series E36 323ti, you can identify the 密封件 前車門 by locating its position on the schematic, which then links to the official BMW part number 51728196291 for the 車身裝備 section.
