加強件 車身 for BMW 3 Series E46 330xi (2001)

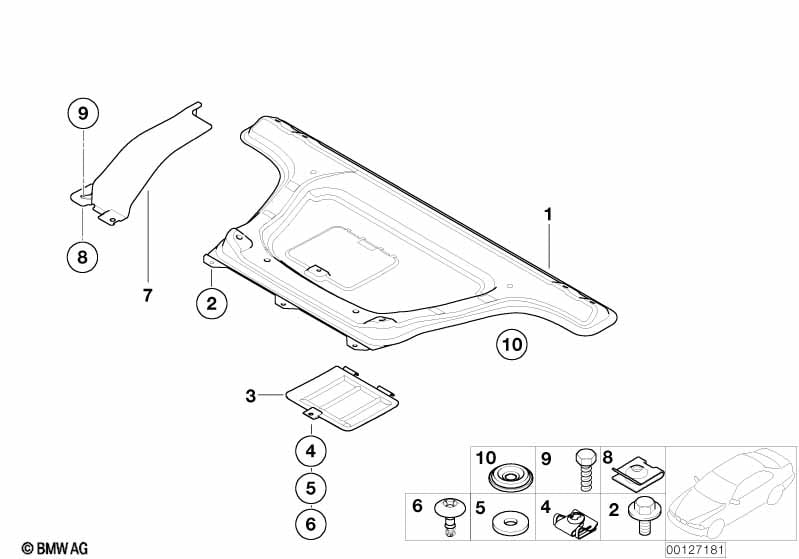

This 加強件 車身 technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| 號碼. | 敘述 | 補充 | 數量 | 從 | 最高至 | 零件料號 | 價錢 | 備註 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 加強板 | 1 | 02/2001 | 51717028433 | $192.85 | Shop at ECS Tuning | ||||
| 02 | 六角螺栓 帶法蘭 | M10X35-10.9ZNS3 | 8 | 31106772199 | $1.61 | Shop at ECS Tuning | ||||
| 03 | 蓋罩 | 1 | 51617199687 | $5.82 | Shop at ECS Tuning | |||||
| 04 | C 形夾子 螺母 | 1 | 07146981767 | $1.33 | Shop at ECS Tuning | |||||
| 05 | 防鬆墊片 | D=12MM | 1 | 51718212163 | $0.26 | Shop at ECS Tuning | ||||
| 06 | 快速閉鎖螺塞 | 1 | 07147177492 | $1.08 | Shop at ECS Tuning | |||||
| 10 | 密封蓋 | D=32 | 4 | 61138372309 | $1.40 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 330xi 加強件 車身?
- This technical diagram illustrates the 加強件 車身 within the 車身裝備 group for the 3 Series E46 330xi produced during 2001. It provides a detailed exploded view of the components, identifying key parts such as the 加強板 (Part #51717028433).
- Which models use the hardware listed in this 加強件 車身?
- The hardware and components featured in the 加強件 車身 are specific to the 3 Series E46 330xi produced during 2001. These technical specifications ensure that parts like the 加強板 (51717028433) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the 加強件 車身 assembly?
- Each item in the 加強件 車身 corresponds to the numbered list below the illustration. For the 3 Series E46 330xi, you can identify the 加強板 by locating its position on the schematic, which then links to the official BMW part number 51717028433 for the 車身裝備 section.
