隔熱 for BMW 5 Series E61 530d (2005)

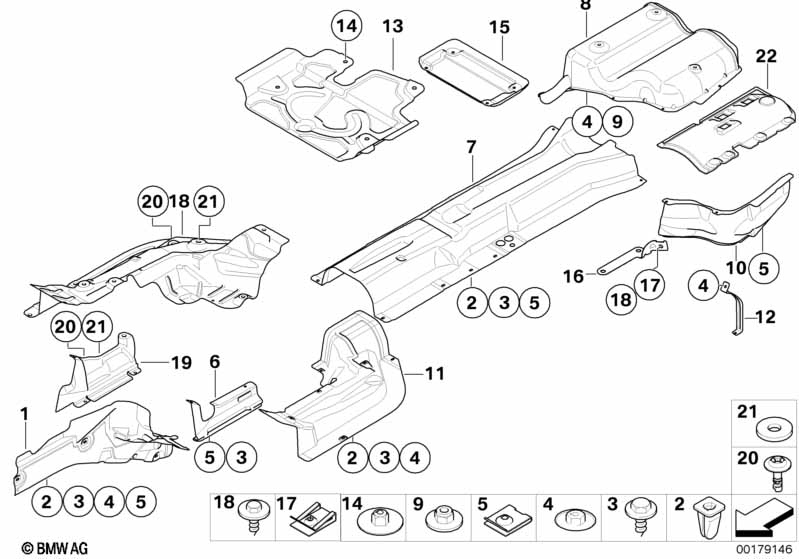

This 隔熱 technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 530d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| 號碼. | 敘述 | 補充 | 數量 | 從 | 最高至 | 零件料號 | 價錢 | 備註 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 隔熱件 發動機支架 右側 | 1 | 51487116890 | $41.42 | Shop at ECS Tuning | |||||
| 02 | 膨脹螺母 | ST4,8MM | X | 51717154520 | $0.23 | Shop at ECS Tuning | ||||
| 03 | 六角自攻螺釘及平墊圈 | ST4,8X16MM | X | 07147129160 | $0.36 | Shop at ECS Tuning | ||||
| 04 | 螺母 | X | 51418176418 | $0.23 | Shop at ECS Tuning | |||||
| 05 | 鋼板螺母 | ST4,8-9-ZNS3 | X | 07129904150 | $0.25 | Shop at ECS Tuning | ||||
| 06 | 絕熱件 右 | 1 | 51487033726 | $13.60 | Shop at ECS Tuning | |||||
| 07 | 絕熱件 變速箱傳動軸蓋板 / 燃油箱 | 1 | 51487130801 | $102.13 | 已不供應 | Shop at ECS Tuning | ||||
| 08 | 隔熱 後消音器 | 1 | 51487033718 | $90.90 | 已不供應 | Shop at ECS Tuning | ||||
| 09 | 六角螺母 自鎖式 | M6 | 1 | 51128400432 | $0.79 | Shop at ECS Tuning | ||||
| 10 | 左後保險槓隔熱裝置 | 1 | 51487060661 | $13.60 | Shop at ECS Tuning | |||||
| 11 | 隔熱 左前 | 1 | 51487033721 | $61.58 | Shop at ECS Tuning | |||||
| 11 | 絕熱件 右前 | 1 | 51487033722 | $61.58 | Shop at ECS Tuning | |||||
| 12 | 支架 隔熱板 左 | 1 | 51717039129 | $6.65 | Shop at ECS Tuning | |||||
| 12 | 支架 隔熱板 右 | 1 | 51717039130 | $6.65 | Shop at ECS Tuning |
備註
- 已不供應 = 此零件已停產
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E61 530d 隔熱?
- This technical diagram illustrates the 隔熱 within the 車身裝備 group for the 5 Series E61 530d produced during 2005. It provides a detailed exploded view of the components, identifying key parts such as the 隔熱件 發動機支架 右側 (Part #51487116890).
- Which models use the hardware listed in this 隔熱?
- The hardware and components featured in the 隔熱 are specific to the 5 Series E61 530d produced during 2005. These technical specifications ensure that parts like the 隔熱件 發動機支架 右側 (51487116890) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the 隔熱 assembly?
- Each item in the 隔熱 corresponds to the numbered list below the illustration. For the 5 Series E61 530d, you can identify the 隔熱件 發動機支架 右側 by locating its position on the schematic, which then links to the official BMW part number 51487116890 for the 車身裝備 section.
