密封蓋 / 密封塞 for BMW 5 Series E61 530d (2005)

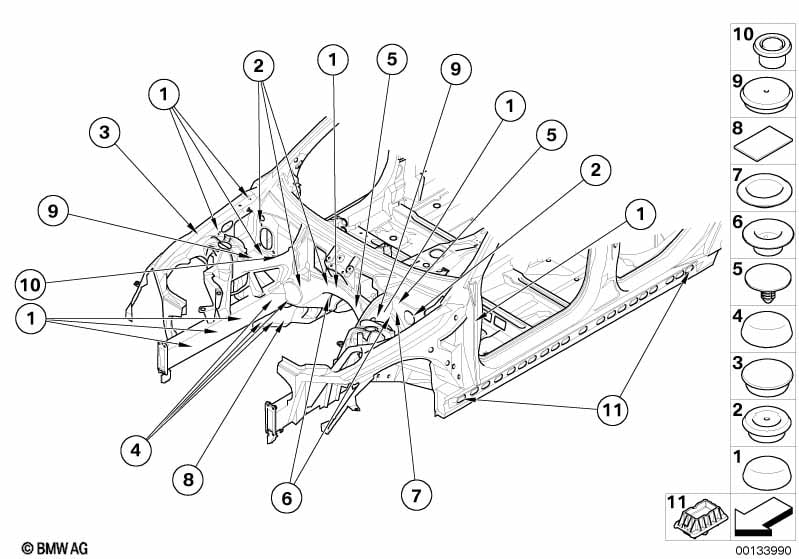

This 密封蓋 / 密封塞 technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 530d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| 號碼. | 敘述 | 補充 | 數量 | 從 | 最高至 | 零件料號 | 價錢 | 備註 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | D = 車身上的 分度圓直徑 |
|||||||||
| 01 | 密封塞 | D=12MM | X | 07147127539 | $0.26 | Shop at ECS Tuning | ||||
| 02 | 密封塞 | D=20MM | X | 07147140850 | $0.19 | Shop at ECS Tuning | ||||
| 03 | 密封塞 | D=15MM | X | 51718170298 | $0.23 | Shop at ECS Tuning | ||||
| 04 | 密封塞 | D=15MM | X | 07147127540 | $0.26 | Shop at ECS Tuning | ||||
| 05 | 塞子 黑色 | D=5MM | X | 52208133466 | $0.50 | Shop at ECS Tuning | ||||
| 06 | 密封塞 | D=10MM | X | 51718226004 | $0.23 | Shop at ECS Tuning | ||||
| 07 | 密封塞 | D=28MM | X | 51718138511 | $0.69 | Shop at ECS Tuning | ||||
| 08 | 密封件 | 25X25MM | X | 09/2024 | 51718163653 | $0.32 | Shop at ECS Tuning | |||
| 08 | 密封件 | 50X110 | X | 07149304035 | Shop at ECS Tuning | |||||
| 09 | 密封塞 | D=35MM | X | 07147140849 | $0.73 | Shop at ECS Tuning | ||||
| 10 | 密封塞 | D=40MM | X | 51712258519 | $0.89 | Shop at ECS Tuning | ||||
| 11 | 定位件 升降台 | 4 | 51717065919 | $14.75 | Shop at ECS Tuning | |||||
