玻璃 安裝件 for BMW 8 Series G16 Gran Coupé 840dX (2024)

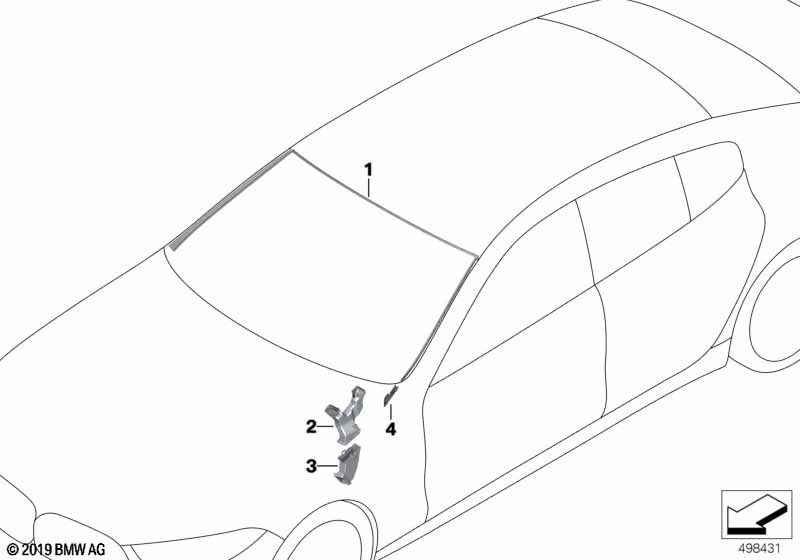

This 玻璃 安裝件 technical drawing provides a detailed breakdown of the assembly for the 8 Series G16 Gran Coupé 840dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| 號碼. | 敘述 | 補充 | 數量 | 從 | 最高至 | 零件料號 | 價錢 | 備註 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 蓋板 擋風玻璃 | 1 | 51317440174 | Shop at ECS Tuning | ||||||
| 02 | 排水通道 上部 右側 | 1 | 51317388733 | Shop at ECS Tuning | ||||||
| 02 | 排水通道 上部 左側 | 1 | 61667357246 | Shop at ECS Tuning | ||||||
| 03 | 排水通道 下部 左側 | 1 | 61667357247 | Shop at ECS Tuning | ||||||
| 03 | 排水通道 下部 右側 | 1 | 61667357248 | Shop at ECS Tuning | ||||||
| 04 | 導水元件 左 | 1 | 51319478475 | Shop at ECS Tuning | ||||||
| 04 | 導水元件 右 | 1 | 51319478476 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 8 Series G16 Gran Coupé 840dX 玻璃 安裝件?
- This technical diagram illustrates the 玻璃 安裝件 within the 車身裝備 group for the 8 Series G16 Gran Coupé 840dX produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the 蓋板 擋風玻璃 (Part #51317440174).
- Which models use the hardware listed in this 玻璃 安裝件?
- The hardware and components featured in the 玻璃 安裝件 are specific to the 8 Series G16 Gran Coupé 840dX produced during 2024. These technical specifications ensure that parts like the 蓋板 擋風玻璃 (51317440174) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the 玻璃 安裝件 assembly?
- Each item in the 玻璃 安裝件 corresponds to the numbered list below the illustration. For the 8 Series G16 Gran Coupé 840dX, you can identify the 蓋板 擋風玻璃 by locating its position on the schematic, which then links to the official BMW part number 51317440174 for the 車身裝備 section.
