座椅 前部 座椅導軌 for BMW 5 Series E60 525d (2003)

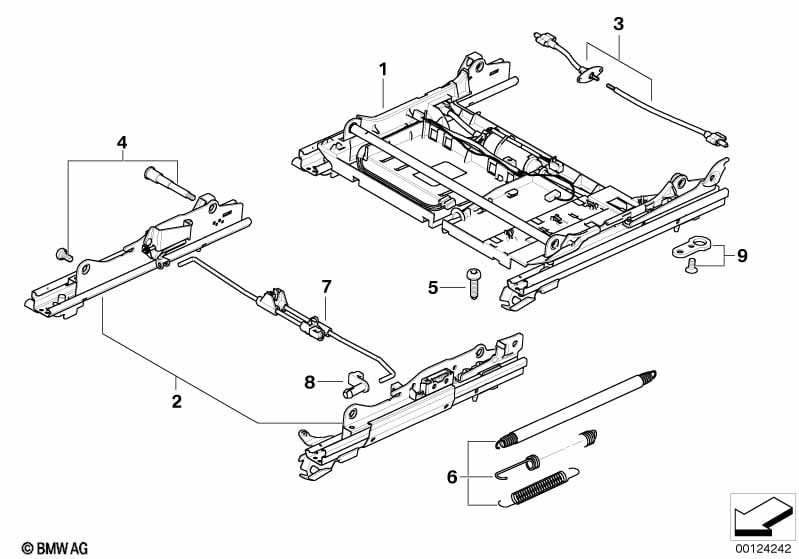

This 座椅 前部 座椅導軌 technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| 號碼. | 敘述 | 補充 | 數量 | 從 | 最高至 | 零件料號 | 價錢 | 備註 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | 用於車輛及 標配座椅 和 手動座椅調整裝置 |
=岆 =岆 |
||||||||
| 02 | 座椅導軌 外部 左 | 1 | 52107120191 | $74.31 | Shop at ECS Tuning | |||||
| 02 | 座椅導軌 外部 右 | 1 | 52107120192 | $74.31 | Shop at ECS Tuning | |||||
| 02 | 座椅導軌 內部 左 | 1 | 52107120193 | $92.84 | Shop at ECS Tuning | |||||
| 02 | 座椅導軌 內部 右 | 1 | 52107120194 | $92.84 | Shop at ECS Tuning | |||||
| 04 | 螺栓組件 | 2 | 52107068060 | $21.66 | Shop at ECS Tuning | |||||
| 05 | 半圓頭埋頭螺釘 | M10X37 | 4 | 07149156953 | $1.36 | Shop at ECS Tuning | ||||
| 標準座椅 部份電動 | ||||||||||
| 06 | 組件 彈簧 | 2 | 52107120190 | $14.41 | Shop at ECS Tuning | |||||
| 07 | 解鎖拉桿 | 2 | 52107120195 | $12.45 | Shop at ECS Tuning | |||||
| 08 | 夾子 | 4 | 52108157406 | $3.48 | Shop at ECS Tuning | |||||
| 10 | 支架 控制單元 | 2 | 52106972075 | $17.45 | Shop at ECS Tuning | |||||
