單個組件 刮水臂 後窗 for BMW 3 Series E46 318i (2004)

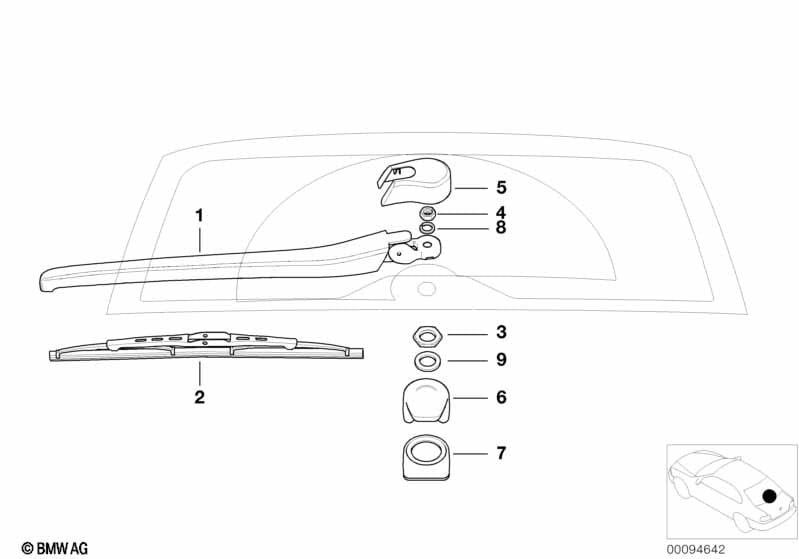

This 單個組件 刮水臂 後窗 technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| 號碼. | 敘述 | 補充 | 數量 | 從 | 最高至 | 零件料號 | 價錢 | 備註 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 刮水臂 後窗玻璃 | 1 | 61628220830 | $40.56 | Shop at ECS Tuning | |||||
| 02 | 刮水器刮片 | 1 | 61628220828 | $22.36 | Shop at ECS Tuning | |||||
| 03 | 六角螺母 | 1 | 07147172628 | $2.35 | Shop at ECS Tuning | |||||
| 04 | 六角螺母 | M8-05-ZNNIV SI | 1 | 07119904948 | $1.00 | Shop at ECS Tuning | ||||
| 05 | 飾蓋 刮水器軸 | 1 | 61628222510 | $2.42 | Shop at ECS Tuning | |||||
| 06 | 帶微開關的後窗按鈕 | 1 | 61319200673 | +料件本體費. | Shop at ECS Tuning | |||||
| 07 | 帶微開關的後窗按鈕 | 1 | 61319200673 | +料件本體費. | Shop at ECS Tuning | |||||
| 08 | 彈簧墊片 | 8,4X15-ZNS3 | 1 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 09 | 密封件 | 1 | 61627197857 | $0.18 | Shop at ECS Tuning |
備註
- +core = 加上料件本體費費用 (舊零件有可能回收)
