組件 刮水器刮片 扁平片 / 萬向片 for BMW 3 Series E46 318i (2004)

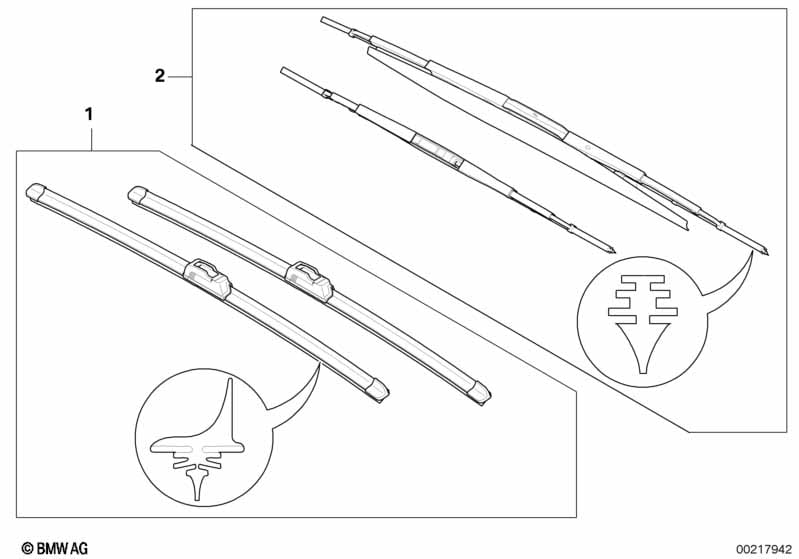

This 組件 刮水器刮片 扁平片 / 萬向片 technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| 號碼. | 敘述 | 補充 | 數量 | 從 | 最高至 | 零件料號 | 價錢 | 備註 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 組件 刮水器刮片 "evo Flachblatt" | 1 | 61612458348 | Shop at ECS Tuning | ||||||
| 在從活節刮水器刮片 改裝到 evo 平刮片時必須 去除駕駛員側刮水臂上的 刮水器片導向件 (TN 8 263 685) (參見圖板 61_1065﹐位置 9)。 |
||||||||||
